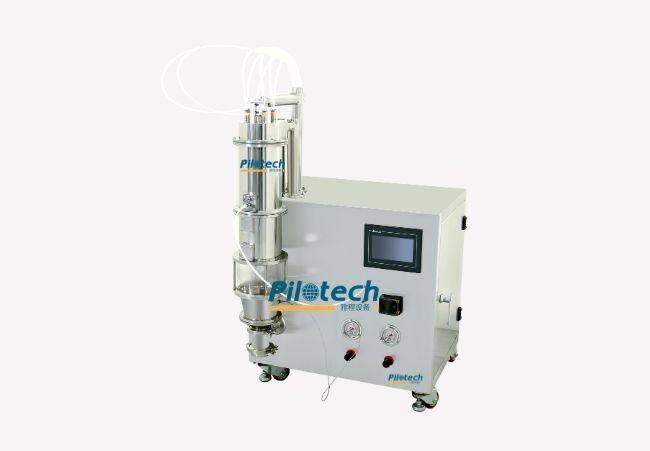

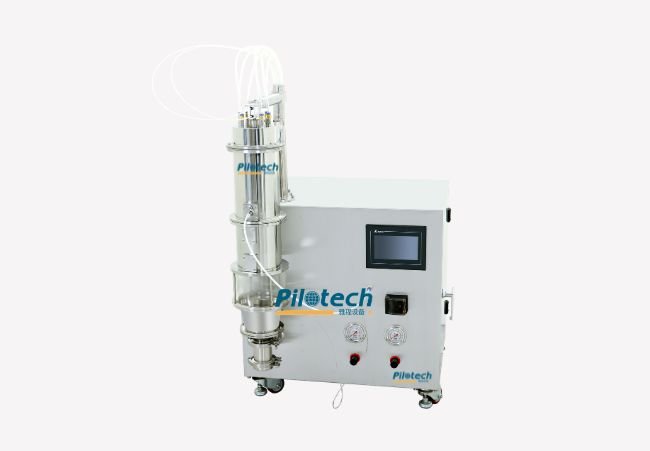

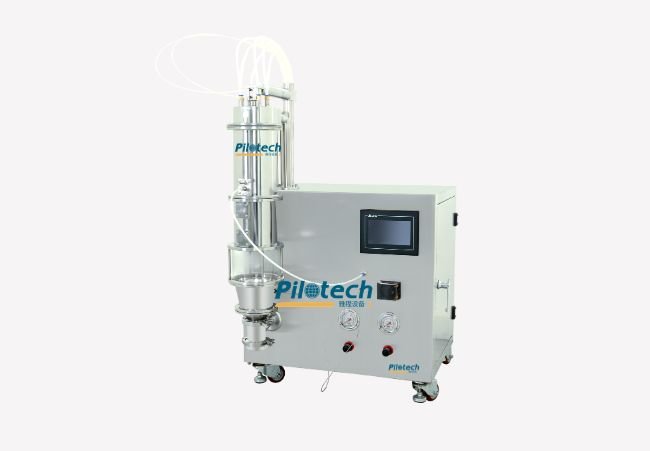

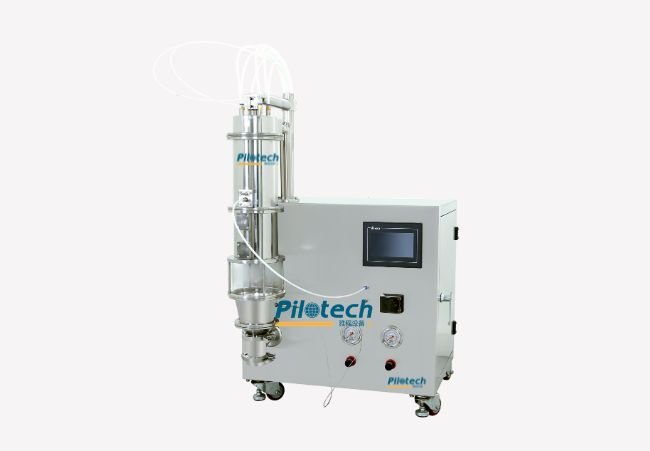

Laboratory Spray Granulator Model: YC-310
- The first lab spray granulator in the world.
- Easy to install and operate.
- User-friendly LCD touchscreen.
- Compact design, save space and costs for labs.
- Can be used for fluid bed drying, granulation, coating and mixing.
- Datasheet
- Video
| Sr.no | Parameter | Pilotech YC-310 Spray Granulator |
| 1 | Power Supply | 220V; single-phase; 3KW |
| 2 | Function | Spray granulator, coating, fluid bed drying, mixing |
| 3 | Spray granulator capacity | Max. 300g/batch |
| 4 | Fluid bed drying capacity | Max. 300g/batch |
| 5 | Coating capacity | Max. 300g/batch |
| 6 | Mixing capacity | Max. 300g/batch |
| 7 | Compressed air | 3bar |
| 8 | Granulator temperature | 40-150⁰C |
| 9 | Minimum material volume | 100g |
| 10 | Nozzle type | Two fluid nozzle |
| 11 | Nozzle jet | 1.0mm standard |
| 12 | Body material | SUS304 Stainless steel |

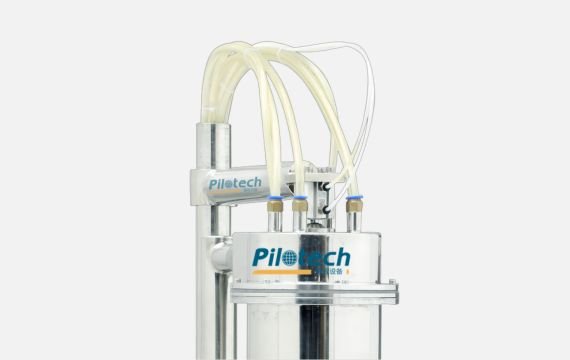

Advanced Blowback System
YC-310 laboratory spray granulator is equipped with an advanced blowback system, which improves the granulation rate by automatically back-blowing compressed air.

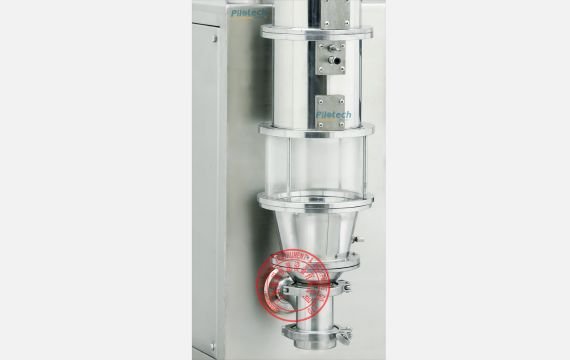

Top Spray and Bottom Spray
Pilotech YC-310 spray granulator offers both Top Spray and Bottom Spray. The Top Spray is versatile, ideal for spray drying, granulation, and taste-masking coatings. The Bottom Spray is specialized for functional coatings on various pellets and fine particles.

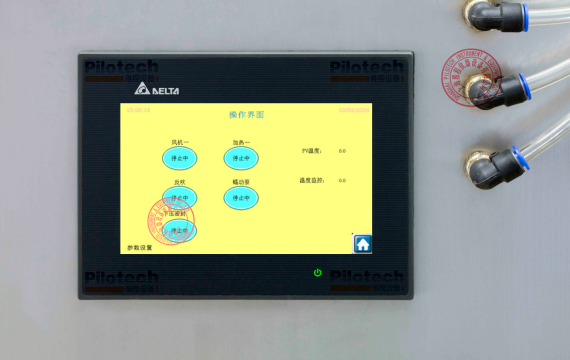

User friendly Touchscreen
Pilotech YC-310 spray granulator features user-friendly touchscreen controls, allowing precise management of the blower, blowback system, heater, peristaltic pump and more. This intuitive interface simplifies operation, enhances accuracy, and improves overall efficiency.
Pilotech Related Products
Complete Guide
to YC-310 Spray Granulator
YC-310 spray granulator is also called boiling granulator or fluid bed granulator.
YC-310 spray granulator is a combination of spraying and granulation, mainly used for granulation of large-particle powder in the laboratory.
YC-310 spray granulator is a small multifunctional spray granulator. Only one device is needed to complete fluidized bed spray drying, granulation and coating experiments.
YC-310 spray granulator is very small. From the appearance, it can be seen that its floor space is less than one square meter.
The capacity of YC-310 spray granulator is 300g/batch, and only 50g of material is needed to complete an experiment.
The power of YC-310 spray granulator is only 3KW. There are many granulators on the market that look very large, but because the space in the laboratory is relatively small, the YC-310 spray granulator can save space very well.
Let’s take a look at the function introduction of YC-310 spray granulator:
There are two types of granulation.
The first is to granulate liquid materials. For example, if your material is some Chinese medicine extract, when granulating the Chinese medicine extract, we first put the auxiliary materials into the fluidized bed, and then spray the Chinese medicine extract into the fluidized bed to achieve granulation;
The second granulation is to granulate powder. When granulating powder, put the powder into the fluidized bed, spray the binder to make the powder agglomerate, so as to obtain larger particles.
Fluid bed drying is mainly used to dry some wet powders. For example, hygroscopic powder contains some moisture. After the powder is placed in the fluidized bed for drying, the moisture content of the powder can generally be less than 1%.
Coating refers to wrapping a thin film on the surface of the material, such as sugar coating film, polymer material, etc.
YC-310 spray granulator has a PLC controller, a 7-inch color LCD touch screen display, an English operation interface, and is easy to operate. We can also customize the language according to your requirements.
The YC-310 spray granulator can be used for medicine, food, plastics, ceramic products, etc.
Technical Specifications
To provide a clear understanding of the capabilities of YC-310 Spray Granulator, here are its detailed technical specifications:
| Parameter | Pilotech YC-310 spray granulator |
| Function | Spray granulator, coating, fluid bed drying, mixing |
| Spray granulator capacity | Max. 300g/batch |
| Minimum sample volume | 100g |
| granulator temperature | 40-150⁰C |
| Compressed air | 3bar |
| Coating | Max. 300g/batch |
| Mixing | Max. 300g/batch |
| Nozzle type | Two fluid nozzle |
| Nozzle jet | 1.0mm standard |
| Rated airflow | 120 mᶟ/h |
| Peristaltic pump | Max. 1000ml/h |
| Power Supply | 220V; single-phase; 3KW |
| Main chamber material | SUS304 Stainless steel &High borosilicate glass |
| Body material | SUS304 Stainless steel |
| Seal of cyclone/cylinder | Silicone |
| Dimensions | 700*600*1150mm |
| Display | 7-Inch LCD display |
Contact us today to learn more about how YC-310 spray granulator can meet your needs. Our sales team is here to provide you with all the information you need and answer any questions you may have. Reach out to Pilotech and take the first step towards more efficient and effective granulation processes in your lab.
YC-310 spray granulator only needs 50 grams of material for one experiment.
YC-310 spray granulator combines fluid bed drying, granulation and coating processes, making it ideal for producing large particle powders.
Yes, YC-310 Spray Granulator can handle fluid bed drying, granulation, and coating processes with one machine.
YC-310 Spray Granulator features a 7-inch color LCD touch screen with an intuitive interface available in English. We can also customize the language according to your requirements.
The granulation, drying and coating functions of YC-310 spray granulator are particularly suitable for the pharmaceutical, food, plastic and ceramic industries.
YC-310 spray granulator can operate at 40-150⁰C for spray granulation, providing flexibility for different drying requirements.
YC-310 spray granulator comes with standard nozzle sizes which is 1.0 mm.
YC-310 spray granulator adopts an easy-to-clean design, and its components are easy to disassemble, minimizing the operator’s time.
Yes, YC-310 spray granulator is ideal for research and development due to its small batch size capability and versatile processing options.
YC-310 spray granulator can process a wide range of materials, including powders, granules, and small particles, making it versatile for different applications.
Pilotech is known for its commitment to quality, innovation, and customer satisfaction. Our YC-310 Spray Granulator is designed with advanced technology, user-friendly features, and robust safety mechanisms, making it a reliable and efficient choice for your laboratory.
YC-310 spray granulator can lead to significant cost savings by reducing the need for multiple machines, decreasing processing time, and minimizing material waste. This efficiency translates to a faster return on investment and long-term savings.
Pilotech offers comprehensive support including online installation assistance, training, maintenance and troubleshooting. Our dedicated team is ready to help you maximize the performance and life of your YC-310 Spray Granulator.
For more information or to purchase the YC-310 Spray Granulator, please contact our professional sales team. They are ready to provide assistance and answer any questions you may have.
