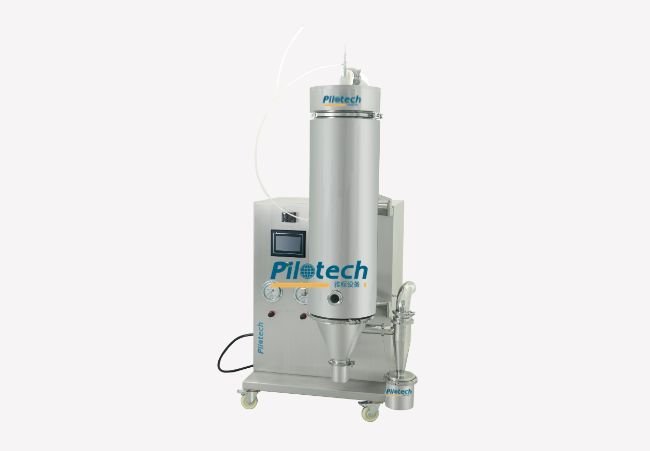

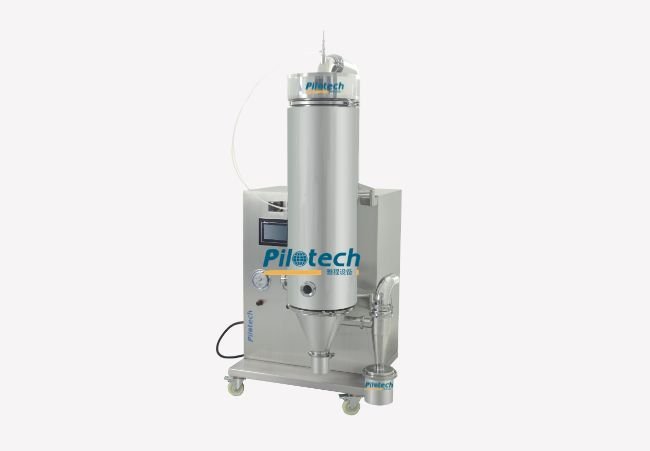

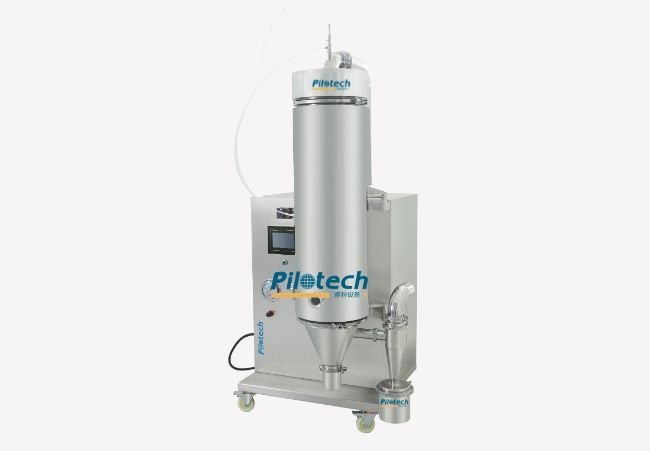

Pilot Scale Spray Dryer Model: YC-019
- Achieves up to 95% recovery rate.
- Inlet temperature from 110°C to 350°C.
- Consumes only 12 kW of power.
- Occupies just one square meter of space.
- Particle size from 1 to 100 microns.
- Datasheet
- Video
| Sr.no | Parameter | Pilotech YC-019 pilot spray dryer |
| 1 | Power Supply | 12KW |
| 2 | Voltage | 380V; three-phase five-wire |
| 3 | Frequency | 50-60 Hz |
| 4 | Compressed air | 64L/min |
| 5 | Rated airflow | 2m³/min |
| 6 | Capacity | 5000ml/hr |
| 7 | Air Inlet temperature | Max 300⁰C |
| 8 | Heater power | 9KW |
| 9 | Temperature precision | ±2⁰C |
| 10 | Nozzle type | Two fluid nozzle |
| 11 | Nozzle tip diameter | 2.0mm standard/(0.5/0.8/1.0/1.5 available) |
| 12 | Possible particle size range | 1-100µm |
| 13 | Max. Sample feed | 5000ml/hr |
| 14 | Min. sample volume | 100ml |
Customizable Atomizer
Equipped with two-fluid atomizer, three-fluid atomizer is optional, standard nozzle size is 2.0mm, optional sizes are 0.5mm, 0.8mm, 1.0mm, 1.5mm. Can be customized according to requirements.
Peristaltic Pump
It features a self-priming peristaltic pump and food-grade feed tubing, ensuring safe and hygienic handling of sensitive materials. It meets strict food safety standards and is ideal for applications in the food and beverage industry as well as the pharmaceutical industry.

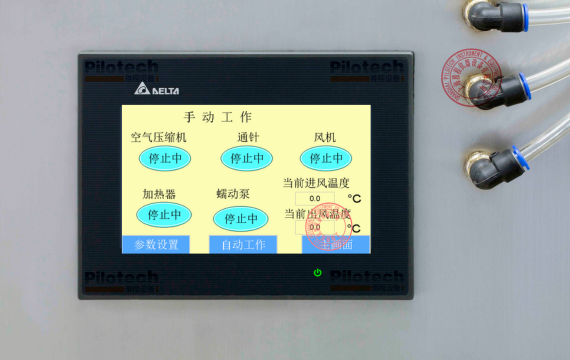

User-Friendly Interface
Equipped with a 7-inch LCD touch screen display, parameters such as heat, peristaltic pump speed, inlet air temperature, needle and blower can be easily controlled and monitored.
Pilotech Related Products
Complete Guide
to YC-019 Pilot Spray Dryer
Welcome to Pilotech’s comprehensive guide on YC-019 Pilot Spray Dryer, the solution for your pilot-scale spray drying needs.
YC-019 pilot spray dryer is the smallest pilot spray dryer with capacity of 5L/H and the smallest volume on the market.
YC-019 pilot spray dryer only covers one square meter, and the power is only 12KW, while the conventional 5L/H spray dryers power is more than 27KW.
YC-019 pilot spray dryer has the following characteristics.
1. YC-019 pilot spray dryer can handle both 5L of material per hour and minimum of 100ml of material as well.
2. YC-019 pilot spray dryer is the spray dryer with the widest temperature range on the market. Its highest air inlet temperature is 350℃ and the lowest is 110℃. When the inlet air temperature is 110℃, the outlet air temperature is only 60℃. It can still maintain good activity when the air inlet temperature is 110 degrees, especially heat sensitive materials.
3. YC-019 pilot spray dryer is the spray dryer with the widest range of particles after drying on the market. The particle size of the general airflow spray dryer is 1-25 microns, while the particle size range of our YC-019 pilot spray dryer It can be as high as 1-100 microns, especially suitable for catalysts, ceramics, and materials with large particles.
4. YC-019 pilot spray dryer recovery rate is high, as high as 95% (based on standard samples), and the recovery rate of general laboratory spray dryers is only 75% (based on standard samples).
5. YC-019 pilot spray dryer is suitable for sugary materials. We have found in the test of natural product extracts and Chinese herbal medicines that the effect of using YC-019 pilot spray dryer is very good, and it doesn’t stick to the inner wall. The recovery rate is high, the recovery rate is high, and the recovery rate of many sugary materials is close to 88%.
Detailed Specifications
| Parameter | Pilotech YC-019 pilot spray dryer |
| Power Supply | 12KW |
| Voltage | 380V; three-phase five-wire |
| Frequency | 50-60 Hz |
| Compressed air | 64L/min |
| Rated airflow | 2m³/min |
| Capacity | 5000ml/hr |
| Air Inlet temperature | Max 300⁰C |
| Heater power | 9KW |
| Temperature precision | ±2⁰C |
| Nozzle type | Two fluid nozzle |
| Nozzle tip diameter | 2.0mm standard/(0.5/0.8/1.0/1.5 available) |
| Possible particle size range | 1-100µm |
| Max. Sample feed | 5000ml/hr |
| Min. sample volume | 100ml |
| Atomizer material | SUS 316 Stainless steel |
| Spray chamber material | SUS304 Stainless steel |
| Cyclone separator material | SUS304 Stainless steel |
| Receiving tank material | SUS304 Stainless steel |
| Body material | SUS304 Stainless steel |
| Seal of cyclone/cylinder | Silicone |
| Dimensions | 1100*1000*1900mm |
| Deblocking | Automatic |
| Weight | 230KG |
| Display | 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency |
| Inert loop (for organic solvents) | Optional |
Contact Pilotech today to learn more about the YC-019 Pilot Spray Dryer. Our team of experts is here to answer any questions you may have and provide you with the best solution for your needs.
The capacity of YC-019 Pilot Spray Dryer is 5L/H, making it suitable for both pilot and small batch production.
YC-019 Pilot Spray Dryer can handle minimum 100ml material.
YC-019 Pilot Spray Dryer features with the inlet temperature adjustable from 110°C to 350°C.
The power of YC-019 Pilot Spray Dryer is 12 kW.
YC-019 pilot spray dryer produces dry particles with diameters of 1-100 microns.
The recovery rate of the YC-019 pilot spray dryer is as high as 95% (based on standard samples).
Absolutely. YC-019 pilot spray dryer is optimized for sugary materials to ensure non-stick wall and high recovery rate. The recovery rate of sugary herbal extracts can reach 88%.
YC-019 Pilot Spray Dryer is versatile and suitable for pharmaceutical, food and beverage, chemical, and research and development industries.
YC-019 Pilot Spray Dryer comes with a standard one-year warranty, you can also extend your warranty for a fee.
Shipping times may vary based on location and availability. Please contact our sales team for specific shipping details.
You can purchase YC-019 Pilot Spray Dryer by contacting our sales team from our website.
