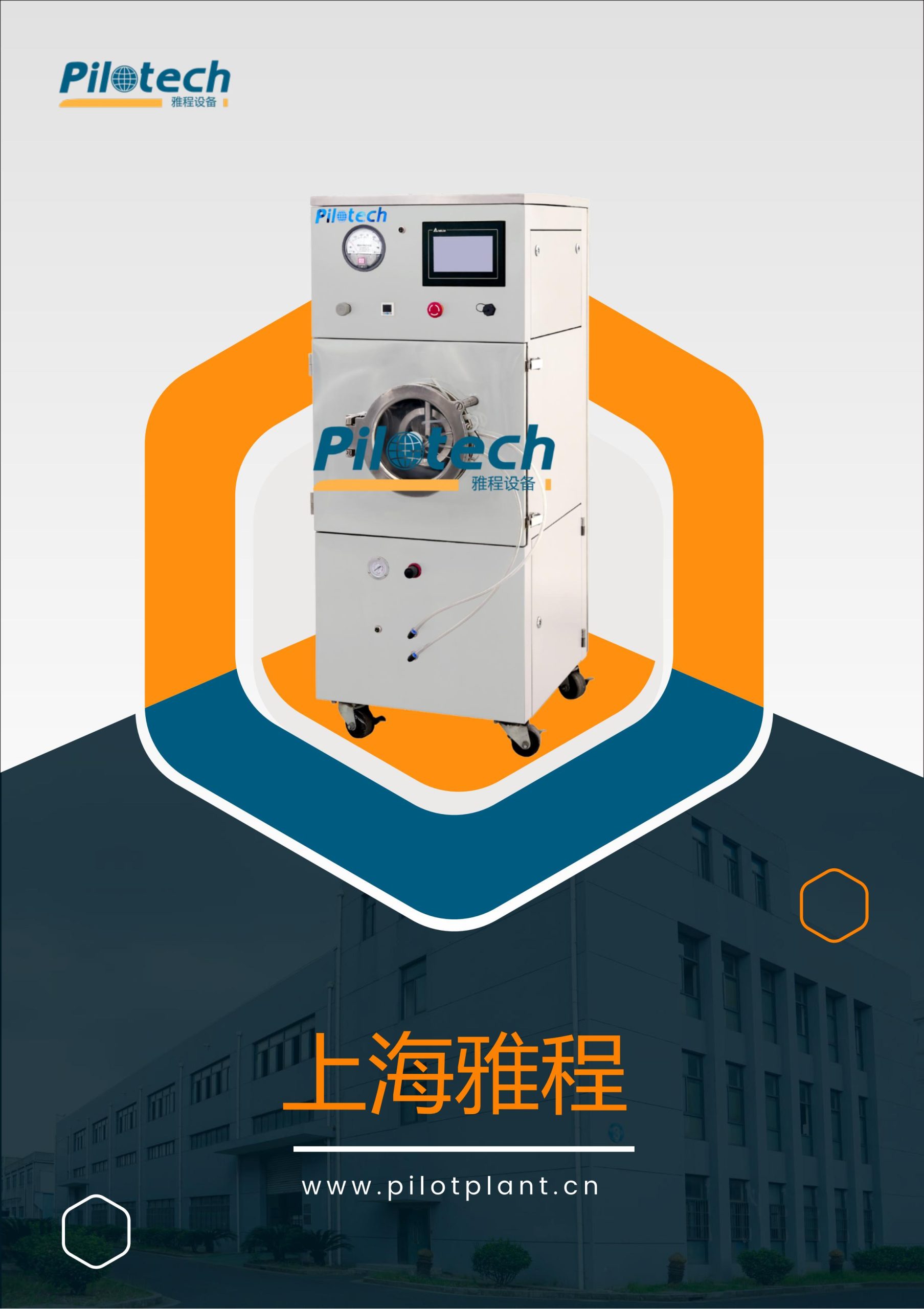

Tablet Coating Machine Model: YC-610
Suitable for coating experiments on tablets, capsules, film coatings, and enteric coatings.
- 7-inch color touch screen, PLC control.
- The Z-type deflector design.
- The capacity is 100g – 400g/batch.
- The inlet and outlet adopts funnel design.
- Optional micro tablet coating pan available for small tablets.
- Datasheet
- Video
| Sr.no | Parameter | Pilotech YC-610 Tablet Coating Machine |
| 1 | Power Supply | Supply 3500W; 220V; single-phase; 50/60Hz |
| 2 | Capacity | 100g-400g/batch |
| 3 | Air consumption | 0.6m³/minute |
| 4 | Minimum material | 100g |
| 5 | Coating pot specifications | φ210mm standard (φ260mm and φ300mm optional), different specifications can be customized as required |
| 6 | Motor stepless speed | The motor speed can be set on the touch screen |
| 7 | Motor power | 370W |
| 8 | Temperature control | PID control |
| 9 | Blower | 1.5 m³/minute |
| 10 | Spray head | With adjustable fan surface |
| 11 | Interface | 7” color touch screen |
| 12 | Deflector | Z-shaped design |
Innovative Z-Shaped Deflector Design
The innovative Z-shaped guide plate design ensures that the tablet bed performs a Z-shaped turning motion, extending the material movement path and significantly improving coating uniformity.
Color Touchscreen Controls
Equipped with a 7-inch color touch screen, PLC control, the touch screen displays key operating parameters such as inlet air temperature, coating pot temperature, blower frequency, atomization pressure, needle action time, pot speed and atomization feed rate.
Pilotech Related Products
Complete Guide
to YC-610 Tablet Coating Machine
Welcome to the comprehensive guide on the YC-610 Tablet Coating Machine, a new product recently launched by Pilotech.
YC-610 Tablet Coating Machine is a multifunctional and efficient equipment designed for laboratory coating experiments. It is suitable for tablets, capsules, film coating, enteric coating and more.
Working Principle of YC-610 Tablet Coating Machine
The working principle of YC-610 Tablet Coating Machine is that the coating pan performs reciprocating circular motion driven by the motor, and the pills and tablets are driven by the guide plate and anti-slip strip of the coating pan to perform reciprocating tumbling motion continuously. The spray head continuously sprays the coating material onto the tablet bed layer. At the same time, under negative pressure, hot air continuously passes through the tablet bed layer and is discharged from the bottom, so that the coating material on the surface of the pills is dried quickly and evenly, thus forming a solid, flat, uniform and smooth outer film.
The capacity of YC-610 Tablet Coating Machine is 100g-400g/batch.
The standard coating pot diameter of YC-610 Tablet Coating Machine is 210mm, and 260mm and 300mm coating pots are optional.
There is a special guide plate design in the coating pot, which is in a Z shape, which can realize the Z-shaped flipping movement of the tablet bed layer, extend the material running path, and improve the coating uniformity.
YC-610 Tablet Coating Machine can adjust the size of the atomization fan to meet the coating tests of different pot bodies and different batches.
The air inlet and outlet of YC-610 Tablet Coating Machine are both designed with wind buckets to improve ventilation efficiency and tablet bed heat exchange efficiency, and improve coating efficiency.
We can select micro tablet coating pots according to customer needs to solve the problem of micro tablet coating.
YC-610 Tablet Coating Machine uses a new spray head with uniform atomization, large spray surface, continuous spraying, and a needle-passing function. The needle-passing frequency can be adjusted on the touch screen. The atomization pressure can be adjusted and displayed on the touch screen. When the atomization pressure is less than or exceeds the set range, the peristaltic pump will automatically stop feeding to prevent dripping and uneven coating.
YC-610 Tablet Coating Machine has a special agitator design, which can effectively prevent the tablet core from slipping and affecting the coating uniformity.
Technical Specifications
| Parameter | Pilotech YC-610 Tablet Coating Machine |
| Power Supply | Supply 3500W; 220V; single-phase; 50/60Hz |
| Capacity | 100g-400g/batch |
| Air consumption | 0.6m³/minute |
| Minimum material | 100g |
| Coating pot specifications | φ210mm standard (φ260mm and φ300mm optional), different specifications can be customized as required |
| Motor stepless speed | The motor speed can be set on the touch screen |
| Motor power | 370W |
| Temperature control | PID control |
| Blower | 1.5 m³/minute |
| Spray head | With adjustable fan surface |
| Interface | 7” color touch screen |
| Deflector | Z-shaped design |
| PLC | Air inlet temperature, coating pot temperature, fan frequency, atomization pressure, needle action time, coating pot rolling frequency, atomization feed speed |
| Material | SUS304 Stainless steel |
Contact Pilotech today to learn more about the YC-610 Tablet Coating Machine and how it can benefit your needs. At Pilotech, we are committed to providing our customers with the highest quality equipment and unparalleled support.Our team of experts is always ready to help you achieve the best results with your YC-610 Tablet Coating Machine.
YC-610 Tablet Coating Machine is primarily used for coating tablets, capsules, film coatings, and enteric coatings in laboratory settings.
Yes, we offer an optional micro tablet coating pan.
Yes, YC-610 Tablet Coating Machine is designed for laboratory-scale applications and can handle batch sizes ranging from 100 grams to 400 grams.
Absolutely! The standard coating pan diameter is 210mm, but we offer optional sizes of 260mm and 300mm to suit different experimental needs.
YC-610 Tablet Coating Machine features a Z-shaped baffle design that promotes efficient Z-axis rotation of the tablet bed, extending the movement path and enhancing coating uniformity.
YC-610 Tablet Coating Machine uses a funnel design for both the inlet and outlet to enhance ventilation efficiency and heat exchange in the tablet bed, improving overall coating efficiency.
YC-610 Tablet Coating Machine has a heating power of 3KW with PID automatic temperature control to ensure consistent and precise heating.
Yes, YC-610 Tablet Coating Machine includes an emergency stop switch, differential pressure gauge, pressure regulator, and various other controls to ensure safe and precise operation.
YC-610 Tablet Coating Machine requires a power supply of 220V/50Hz with a total power consumption of 4KW.
YC-610 Tablet Coating Machine is equipped with a 7-inch color touch screen interface and all process parameters are controlled by a PLC (Programmable Logic Controller).
You can purchase YC-610 Tablet Coating Machine directly from Pilotech by contacting our sales team through our official website, email, or phone. Our sales representatives will guide you through the purchasing process.
The delivery time for YC-610 Tablet Coating Machine typically ranges from 25 working days, depending on the customization requirements and current order volume. We will provide a more precise delivery time when you place your order.
Yes, YC-610 Tablet Coating Machine can be customized to meet your specific needs. We offer various options for coating pan sizes, additional features, and accessories. Please discuss your requirements with our sales team.
We offer various shipping methods, including air freight, sea freight, and express courier services. The best method will depend on your location, budget, and urgency of the shipment.
Import duties and taxes vary by country. It is the customer’s responsibility to be aware of and cover any applicable import duties, taxes, or customs fees in their country.
YC-610 Tablet Coating Machine comes with a one-year warranty. We also offer extended warranty options.
Yes, we welcome customers to visit our factory. Please contact us to arrange a visit and see YC-610 Tablet Coating Machine and other equipment.
Pilotech provides comprehensive technical support. You can reach our support team via phone, email, or our website.
