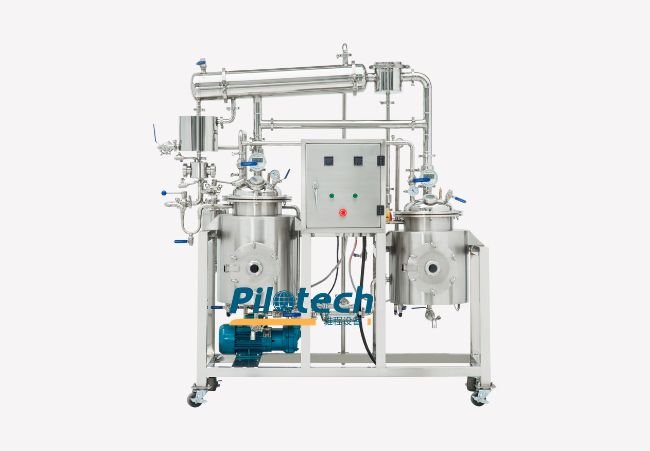

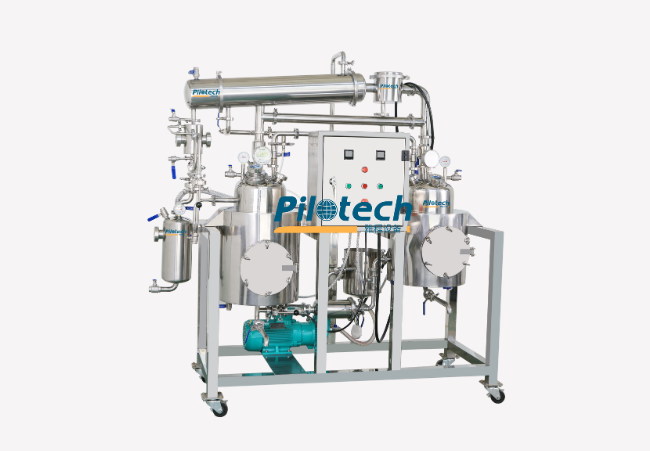

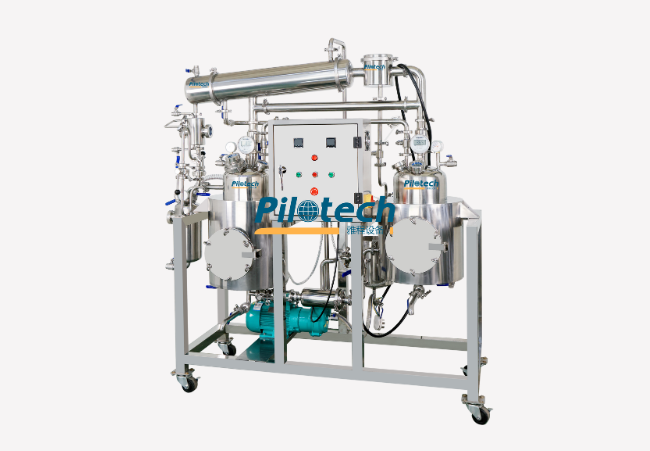

Herbal Extractor Machine Model: YC-020
- Extraction and concentration in one machine.
- Herbal Extractor Machine capacity is 20L.
- Feeding amount 0.3～5kg/batch.
- With wheels, movable, small size.
- Ultrasonic extraction is optional.
- Datasheet
- Video
| Sr.no | Parameter | Pilotech YC-020 Herbal Extractor Machine |
| 1 | Power Supply | Three-phase five-wire; 9KW. |
| 2 | Voltage | 380V |
| 3 | Extraction tank volume | 20L |
| 4 | Machine Material | SUS 304 Stainless Steel |
| 5 | Evaporation chamber vacuum degree | 0~-0.08MPa |
| 6 | Precision of temperature | ±2℃ |
| 7 | Cooling water | 1t/h |
| 8 | Cooling water pressure | ＜0.3pa |
| 9 | Coiled tube condenser area | 0.5㎡ |
| 10 | Dimension | 1850*1000*1850mm
(Reference Size) |
| 11 | Configuration | Stainless steel extractor（20L), Tube array condensator, coiled tube condenser, oil-water separator, pipeline sight glass, Stainless steel water ring pump, Omron temperature controller, Stainless steel extract blue, electric heater, Sanitary safety valve, control cabinet, connection with pipe Tube Fitting Valve |
Pilotech Related Products
Complete Guide
to YC-020 Herbal Extractor Machine FAQs
YC-020 Herbal Extractor Machine has a 20L capacity, and it can handle a feeding amount of 0.3 to 5 kg/batch.
YC-020 Herbal Extractor Machine features a three-layer stainless steel structure: an insulated outer layer, a heating middle layer, and a polished inner layer.
YC-020 Herbal Extractor Machine operates at a heating power of 380V/9KW.
The cooling water consumption rate of YC-020 Herbal Extractor Machine is 1 ton per hour with a pressure of less than 0.3MPa.
The vacuum level ranges of YC-020 herbal extractor is from 0 to -0.08MPa.
YC-020 Herbal Extractor Machine offer offers multifunctional extraction and vacuum concentration, including hot reflux extraction, concentration, conventional extraction, water precipitation, and more.
YC-020 Herbal Extractor Machine is made of SUS304 stainless steel, ensuring durability and safety.
YC-020 Herbal Extractor Machine is leached using a digestion basket.
Yes, YC-020 Herbal Extractor Machine comes with a concentration tank, enhancing efficiency and achieving a concentration ratio of 1.1 to 1.38.
Yes, YC-020 Herbal Extractor Machine is suitable for water extraction and serves as a pilot-scale equipment for natural herbal extraction.
Yes, YC-020 Herbal Extractor Machine includes an oil-water separator for recovering volatile aromatic oils from the material.
It’s ideal for use in research institutions, universities, hospitals, pharmaceutical companies, and the food industry for extracting and concentrating herbal solutions, tea, and juice.
Absolutely, Pilotech offers customization options to meet your specific extraction requirements.
