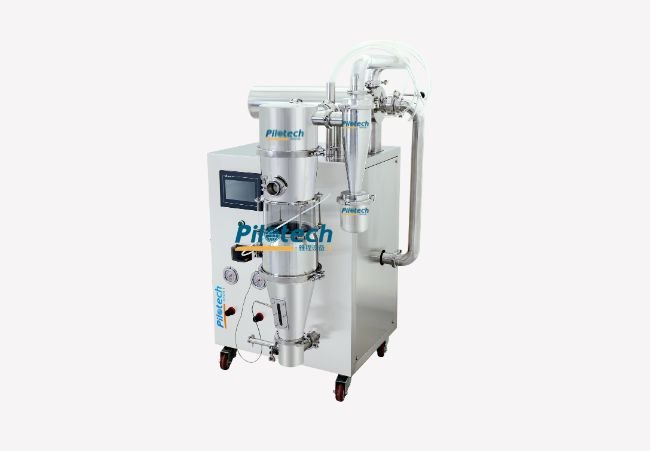

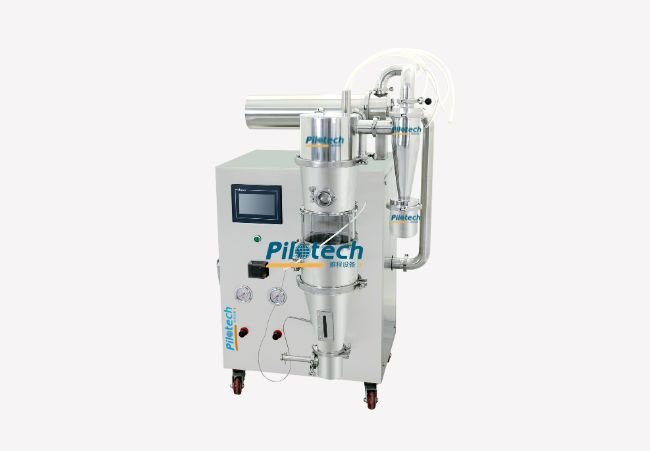

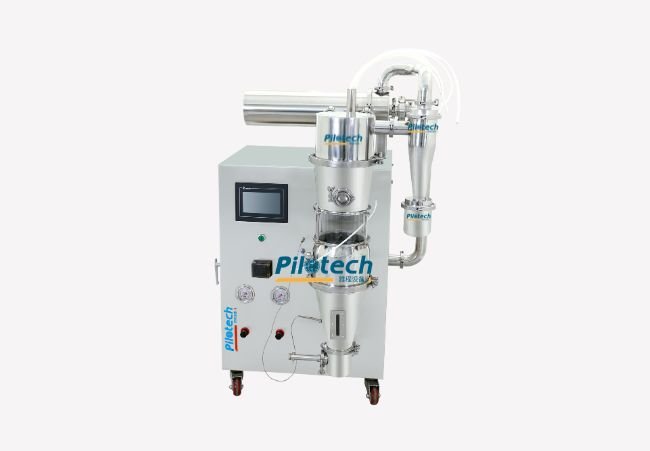

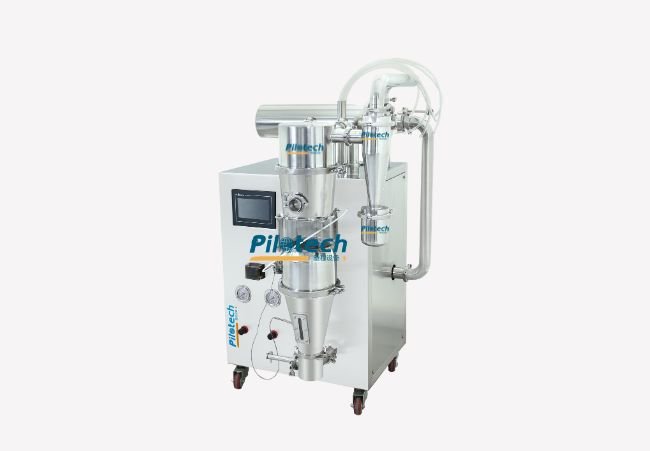

Fluid Bed Dryer Machine Model: YC-1000
One machine covers spray drying, fluid bed drying, fluid bed granulation and coating.
- Compact design, covers less than one square meter.
- PLC control, LCD touch screen, SUS 304 stainless steel.
- It’s a multifunctional Fluid Bed Dryer Machine.
- Suitable for almost all fluid bed processes.
- Only 50g of material is needed for an experiment.
- Datasheet
- Video
- Experimental Results
| Sr.no | Parameter | Pilotech YC-1000 Fluid Bed Dryer Machine |
| 1 | Function | Spray drying, fluid bed drying, granulation, coating |
| 2 | Power Supply | 5KW, 220V, 50-60Hz |
| 3 | Capacity for spray drying | Max. 1500ml/h |
| 4 | Capacity for granulator | Max. 1000g/batch |
| 5 | Capacity for coating | Max. 1000g/batch |
| 6 | Granulator temperature | 40-150⁰C |
| 7 | Spray dryer inlet temperature | 105-200⁰C |
| 8 | Minimum material | 50g |
| 9 | Compressed air | 1-3bar |
| 10 | Nozzle type | Two fluid nozzle |
| 11 | Nozzle jet | 1.0mm standard/(0.5/0.8/1.5/2.0mm available) |

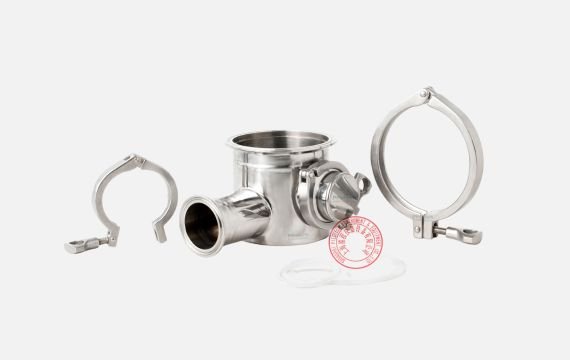

Components are easy to install and disassemble
Pilotech YC-1000 Fluid Bed Dryer Machine is very convenient to install and disassemble. The components are connected by clamps and then tightened. When disassembling, just loosen the clamps to take it out. YC-1000 fluid bed dryer is designed to be easily disassembled, making the cleaning process very simple.

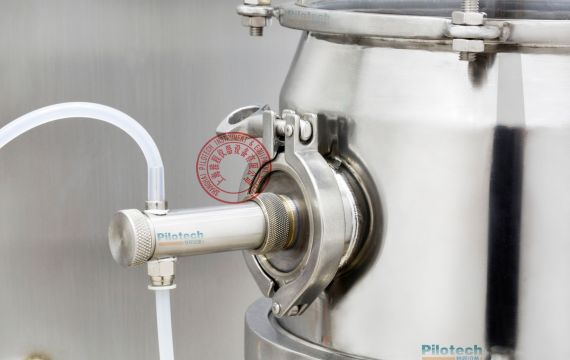

De-blocking Nozzle Design
Equipped with 1.0 mm nozzle, other sizes available as options. Spray assembly includes automatic de-blocking device to prevent nozzle blocking, de-blocking needle can control by touch screen.

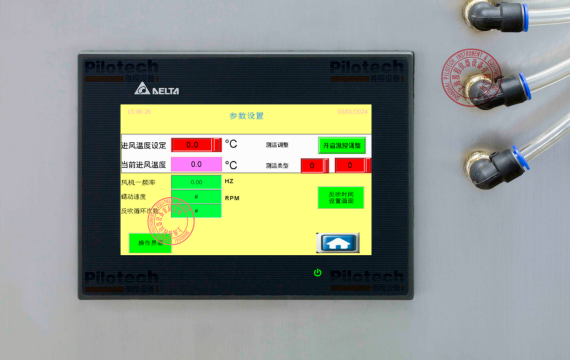

Touchscreen Control
The touch screen has an intuitive and simple interface. Parameters can be set and adjusted in real time for optimal performance. One-touch start allows the system to run quickly.
Pilotech Related Products
Complete Guide
to YC-1000 Fluid Bed Dryer Machine
YC-1000 Fluid Bed Dryer Machine is a multifunctional laboratory spray granulator, also called boiling granulator, fluid bed granulator or fluid bed dryer. Its functions are spray drying, fluid bed granulation, fluid bed coating and fluid bed drying.
YC-1000 Fluid Bed Dryer Machine is the only fluid bed granulator with spray drying function. Its spray drying function is the same as YC-1800 low temperature spray dryer, which is a low-temperature spray dryer.
The minimum air inlet temperature of YC-1000 Fluid Bed Dryer Machine is 105°C, and the minimum outlet air temperature is 60°C, which is far lower than ordinary laboratory spray dryers.
When YC-1000 Fluid Bed Dryer Machine is used for spray drying, the capacity is 1,500ml/h, and minimum capacity is 30ml. When YC-1000 Fluid Bed Dryer Machine is used for granulation and coating, the capacity is 1000g per batch. The minimum amount of material used is 50g, which is suitable for spray drying and spray granulation of materials with a small amount.
The drying chamber of YC-1000 Fluid Bed Dryer Machine is a mixed of stainless steel and high borosilicate glass, which is beneficial to observation experiments and will not be easily broken like full glass.
YC-1000 Fluid Bed Dryer Machine is suitable for sugary materials, such as Chinese herbal medicine and natural product extracts, both in spray drying and granulation.
When YC-1000 Fluid Bed Dryer Machine is used for granulation, the maximum particle size is 3 mm, and the minimum particle size is 100 microns. When YC-1000 Fluid Bed Dryer Machine is used for spray drying, the particle size range is 1-25 microns.
YC-1000 Fluid Bed Dryer Machine is small in size, covers less than 1 square meter, and it has wheels, which is very easy to operate.
Our laboratory spray granulator is made of high-quality stainless steel, and we also have other types of spray dryers, such as YC-501 inert loop spray dryer, YC-01 spray freeze dryer, whatever your application is, we have the most suitable laboratory equipment for you.
Technical Specifications
To provide a clear understanding of YC-1000 Fluid Bed Dryer Machine’s capabilities, here is a detailed table of its technical specifications:
| Parameter | Pilotech YC-1000 Fluid Bed Dryer Machine |
| Function | Spray dryer, spray granulator, coating, mixing |
| Power Supply | 5KW; 220V; single-phase; 50-60Hz |
| Capacity for spray granulator | Max. 1000g/batch |
| Capacity for spray dryer | Max. 1500ml/h |
| Minimum sample volume | 50g |
| Granulator temperature | 40-150⁰C |
| Spray dryer inlet temperature | 105-200⁰C |
| Compressed air | 1-3bar |
| Temperature precision | ±1⁰C |
| Coating | 50-1000g/batch |
| Mixing | 50-1000g/batch |
| Nozzle type | Two fluid nozzle |
| Nozzle jet | 1.0mm standard/(0.5/0.8/1.5/2.0mm available) |
| Rated airflow | 0-150 mᶟ/h |
| Peristaltic pump | Max. 1500ml/h |
| Main chamber volume | 10L |
| Heater power | 3KW |
| Main chamber material | SUS304 Stainless steel & High borosilicate glass |
| Body material | SUS304 Stainless steel |
| Seal of cyclone/cylinder | Silicone |
| Sound | <60db |
| Dimensions | 900*800*1300mm |
| Weight | 110KG |
| Display | 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency |
Each YC-1000 Fluid Bed Dryer Machine is manufactured from the highest quality materials and rigorously tested to ensure it meets our stringent quality standards.
Contact Pilotech today to learn more about YC-1000 Fluid Bed Dryer Machine. Our dedicated customer support team is here to answer any questions you may have.
Pilotech – Your Partner for Innovation and Excellence.
Pilotech YC-1000 Fluid Bed Dryer Machine performs spray drying, fluid bed drying, granulation and coating. It is a versatile laboratory equipment suitable for a variety of applications in pharmaceuticals, food processing, chemical engineering and materials.
YC-1000 Fluid Bed Dryer Machine is a fluid bed granulator with spray drying function. Made of SUS 304 stainless steel and high borosilicate, it is able to process heat-sensitive materials at lower temperature.
The minimum sample volume for spray drying with YC-1000 Fluid Bed Dryer Machine is 50 ml.
The capacity of YC-1000 Fluid Bed Dryer Machine is 1,500 ml/h for spray drying.
The maximum granulation capacity of YC-1000 Fluid Bed Dryer Machine is 1000g/batch, and the maximum coating capacity is 1000g/batch.
YC-1000 Fluid Bed Dryer Machine has a compact footprint, covers less than one square meter. It is also equipped with wheels, making it easy to move and position within your laboratory.
For more information or support regarding the YC-1000 Fluid Bed Dryer Machine, you can contact our customer service team. We are dedicated to providing comprehensive support and ensuring that our customers have the information and assistance they need to successfully utilize our equipment.
In addition to YC-1000 Fluid Bed Dryer Machine, Pilotech offers other models such as the YC-501 Inert Loop Lab Spray Dryer and YC-500 Benchtop Mini Spray Dryer. We provide a range of equipment to meet various laboratory needs. Please do not hesitate to reach out to us at Pilotech.
