YC-015 Lab Spray Dryer
- First Lab Spray Dryer in the World.
- Easy to operate and install.
- Mini Size, Ideal for R&D.
- Easy maintenance, reduce costs.
- Wide range of applications.
- Datasheet
- Video
| Sr.no | Parameter | Pilotech YC-015 Lab Spray Dryer |
| 1 | Power Supply | 3500W |
| 2 | Voltage | 220V; single-phase; 50-60 Hz |
| 3 | Capacity | 1500ml/h |
| 4 | Rated airflow | 1.5mᶟ/min |
| 5 | Min. Outlet temperature | 80°C(related to the boiling point of the solvent) |
| 6 | Max. inlet temperature | 250⁰C |
| 7 | Heater power | 3000W |
| 8 | Temperature precision | ±1⁰C |
| 9 | Nozzle jet | 1.0mm standard/(0.5/0.8/1.5/2.0mm available) |

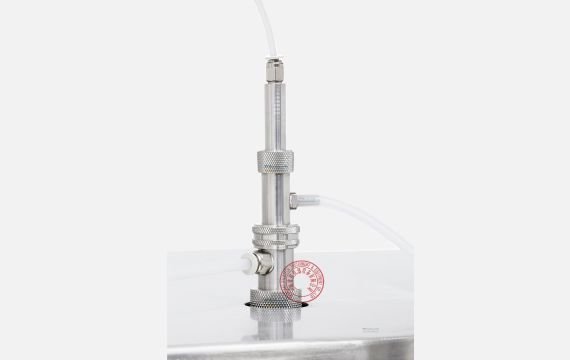

Two Fluid Nozzle with SUS316L Stainless Steel
Pilotech YC-015 Laboratory Spray Dryer features a twin-fluid nozzle made of SUS316L stainless steel. This material is corrosion and temperature resistant. The nozzle is designed to achieve a uniform particle size distribution. Equipped with a 1.0 mm nozzle, other sizes available.

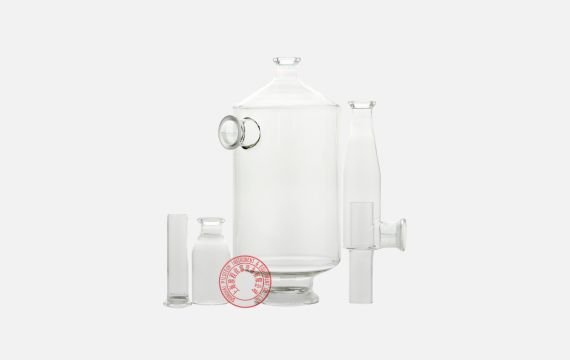

Durable Borosilicate Glass Components
Spray chamber, cyclone separator, collector are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment, and the whole process can be inspected. All the spare parts are easy to install and clean.

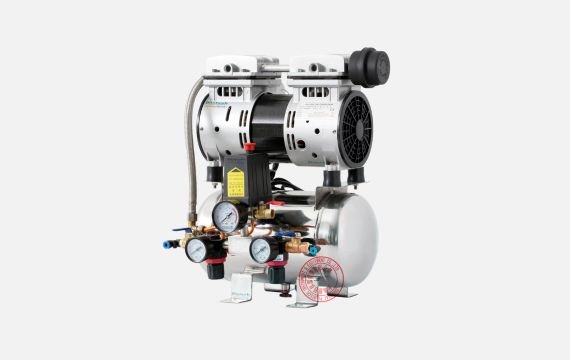

Air Compressor Built-in
Built-in oil-free compressor, using buffer technology, low noise, easy to move. Compressed air container is made of SUS 304 stainless steel to avoid steam corrosion damage.

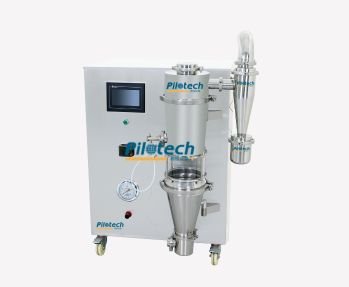

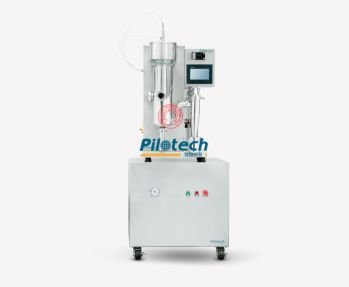

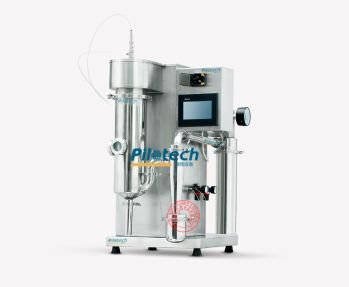

Pilotech Related Products
Complete Guide
to YC-015 Lab Spray Dryer
Pilotech developed YC-015 Lab Spray Dryer in 2005.
We are the first company in China that manufacture laboratory spray dryers. Before that, there were only large spray dryers. When the YC-015 laboratory spray dryer was launched, many people were surprised that there could be such a small spray dryer. Later, we did some experiments with YC-015 Lab Spray Dryer, the effect of our experiment was very ideal, with a high recovery rate.
Let’s check out how is YC-015 Lab Spray Dryer like!
- It doesn’t take a lot of space and easy to store.
- It’s easy to push and use at anywhere with the wheels.
- The oil-free air compressor is built-in.
- It runs with low noise and will not bother your colleague’s work.
- The max capacity is 1,500ML/H.
- An experiment can be completed with only 50ml of material.
- YC-015 lab Spray Dryer is the first spray dryer in China that adopts touch screen and PLC control.
- Control the whole experimental process through the touch screen.
- Touch screen, PLC, frequency converter and other accessories used with top Brand to ensure the stability of the equipment during use and avoid frequent failures.
- YC-015 Lab Spray Dryer is made of 304 stainless steel, and the drying chamber, cyclone separator, collection bottle and collection tube are made of high borosilicate.
Why do we use high borosilicate glass?
1. High borosilicate glass is a very high temperature resistant material.
2. The transparent glass is very easy to observe the experiment.
3. It’s convenient for teachers to explain to students.
The application industry of YC-015 Lab Spray Dryer is very wide, including food, chemistry, traditional Chinese medicine, ceramics, metallurgy and a lot more.
Now, let’s take a look at the complete technical parameters of YC-015 Lab Spray Dryer.
| Parameter | Pilotech YC-015 Lab Spray Dryer |
| Power Supply | 3500W |
| Voltage | 220V; single-phase, 50/60 Hz |
| Atomizer material | SUS 316 Stainless steel |
| Capacity | 1500ml/hr |
| Rated airflow | 1.5 mᶟ/h |
| max. Input temperature | 250⁰C |
| Heater power | 3000W |
| Temperature precision | ±1⁰C |
| Compressed air | 32L/min, 0.2-2bar |
| Nozzle jet | 1.0mm standard/(0.5/0.8/1.5/2.0mm available) |
| Nozzle type | Two fluid nozzle |
| Possible particle size range | 1-25µm |
| Mean Residence time | 1.0-1.5 sec |
| Max. Sample feed | 2000ml/hr |
| Minimum sample volume | 30ml |
| Spray chamber material | borosilicate glass |
| Cyclone separator material | borosilicate glass |
| Receiving tank material | borosilicate glass |
| Body material | SUS304 Stainless steel |
| Seal of cyclone/cylinder | Silicone |
| Compressor | Built-in oilless |
| Sound | <60db |
| Dimensions | 750*650*1200mm |
| Weight | 110KG |
| Display | 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency |
| Thermal protection | Blower does not stop until temp <90⁰C |
| Deblocking | Automatic |
| Inert loop (for organic solvents) | Optional |
Our customers who purchased YC-015 Lab Spray Dryer in 2005 are still using the equipment very well. The normal use of nearly 20 years proves our company’s quality assurance.
Trusted by industry professionals for nearly 20 years. Whether you work in food, chemistry, Chinese medicine, or anything else, the YC-015 Spray Dryer is designed to meet your needs with precision and reliability.
Contact us today for more information or to schedule a demonstration to see how the YC-015 Spray Dryer can revolutionize your lab experiments!
The maximum capacity of YC-015 laboratory spray dryer is 1500ml/h.
The minimum sample volume that the YC-015 laboratory spray dryer can process is 50ml, which is suitable for small-scale laboratory experiments.
YC-015 laboratory spray dryer is made of 304 stainless steel for the main body and high borosilicate glass for the drying chamber, cyclone separator, collection bottle, and collection tank.
YC-015 laboratory spray dryer comes with nozzles of standard 1.0mm diameters, 0.5/0.8/1.5/2.0mm are optional.
Pilotech offers comprehensive technical support, detailed product information and personalized solutions to meet your specific requirements. Our dedicated team is always available to assist you with any questions or needs you may have.
We offer a variety of shipping options, including air and ocean freight, depending on your location and urgency. Our sales team will help you choose the shipping method that best suits your needs.
