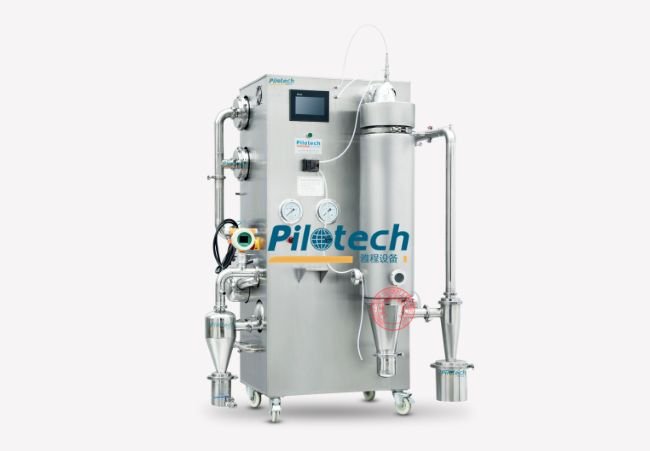

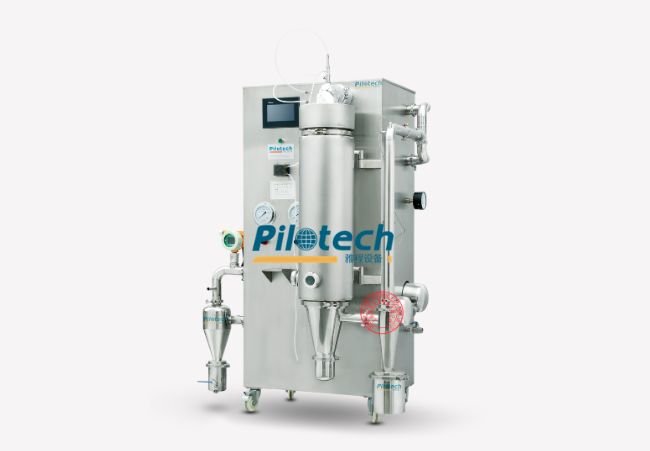

Pilot Inert Loop Spray Dryer Model: YC-019A
- The maximum capacity is 5000ml/h.
- Small size, only 1.3 square meters.
- Built-in nitrogen circulation system, safe to use.
- Only 50ml of material is needed to complete an experiment.
- It’s a pilot spray dryer suitable for both organic solvents and aqueous solutions.
- Datasheet
- Video
| Sr.no | Parameter | Pilotech YC-019A Pilot Inert Loop Spray Dryer |
| 1 | Power Supply | 11.5KW |
| 2 | Voltage | 380V; three-phase five-wire |
| 3 | Frequency | 50-60 Hz |
| 4 | Rated airflow | 3m³/min |
| 5 | Max. Inlet temperature | 260⁰C |
| 6 | Temperature precision | ±2⁰C |
| 7 | Nozzle type | Two fluid nozzle |
| 8 | Nozzle tip diameter | 2.0mm standard/(0.5/0.8/1.0/1.5 available) |
| 9 | Possible particle size range | 3-100µm |
| 10 | Capacity | 5000ml/hr |
| 11 | Min. sample volume | 100ml |
| 12 | Atomizer material | SUS 316 Stainless steel |
| 13 | Spray chamber, Cyclone separator, Receiving tank, Body material | SUS304 Stainless steel |
| 14 | Inert loop (for organic solvents) | Yes |
Two Fluid Atomizer
Pilotech YC-019A Pilot Inert Loop Spray Dryer is equipped with standard two-fluid atomizer, and three-fluid atomizer is optional. The standard nozzle is 2.0 mm, and 0.5/0.8/1.0/1.5mm are available.
Solvent Recovery System
An efficient solvent recovery system captures and condenses organic vapors during the drying process, which are then collected in a solvent recovery tank.

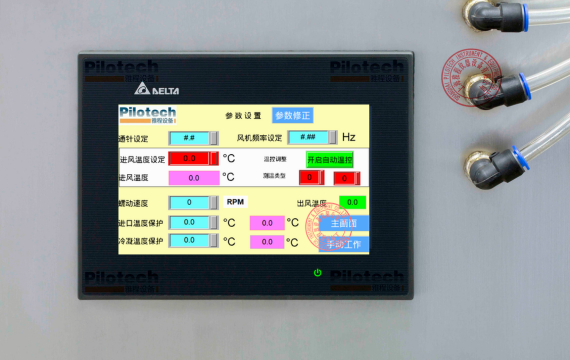

LCD Touch Screen
The LCD touch screen is easy to operate and can adjust process data in real time. The page is clear and easy to understand, making it convenient for operators to control and adjust parameters.
Pilotech Related Products
Complete Guide
to YC-019A Pilot Inert Loop Spray Dryer
YC-019A Pilot Inert Loop Spray Dryer is designed for pilot spray drying of organic solvents and aqueous solutions. With a capacity of up to 5000ml/h, It is ideal for laboratories, R&D centers, including pharmaceutical, chemical, and food production. Its compact design (occupying only 1.3 square meters) and low operating noise make it ideal for laboratories with limited space. In addition, the built-in nitrogen circulation system ensures safe, reliable, and environmentally friendly operation, especially for flammable or toxic solvents.
Main Features of YC-019A Pilot Inert Loop Spray Dryer
1. Suitable for small samples
YC-019A Pilot Inert Loop Spray Dryer can effectively handle the smallest sample volume (as low as 100 ml), which is very suitable for pilot testing. You don’t need to buy multiple spray dryers.
2. Safe inert gas circulation
The closed nitrogen circulation system provides a completely sealed working environment, replacing oxygen with nitrogen to prevent combustion risks. The system ensures that volatile organic solvents are handled safely and solvent vapors are condensed and recovered, thereby improving safety, cost-effectiveness and environmental responsibility.
3. Innovative nozzle options
The optional three-fluid nozzle is added to the original standard two-fluid nozzle, allowing YC-019A Pilot Inert Loop Spray Dryer to meet a wider range of application needs.
4. Compact design
Laboratory space is always a concern, but YC-019A Pilot Inert Loop Spray Dryer only takes up 1.3 square meters of space.
5. Wide temperature range
The inlet air temperature ranges from 60°C to 260°C to accommodate a wide range of solvents and materials, further enhancing its flexibility. Whether your material is temperature sensitive or a high boiling point solvent, YC-019A Pilot Inert Loop Spray Dryer can handle it.
6. Wide range of industrial applications
YC-019A Pilot Inert Loop Spray Dryer is widely used in many industries, including pharmaceutical, energy, automotive, paper, chemical industries and research institutions. Customers have always praised the reliability and performance of the equipment and have many successful case studies in various applications.
Pilotech offers a variety of organic solvent spray dryer models, such as YC-501 Inert Loop Mini Spray Dryer (500ml/h), YC-015A Inert Loop Lab Spray Dryer (1500ml/h), YC-018A Spray Drying Machine (3000ml/h) and YC-019A Pilot Inert Loop Spray Dryer (5000ml/h), each model can meet different scales and requirements.
Now, let’s see its technical parameters
| Parameter | Pilotech YC-019A Pilot Inert Loop Spray Dryer |
| Power Supply | 11.5KW |
| Voltage | 380V; three-phase five-wire |
| Frequency | 50-60 Hz |
| Rated airflow | 3m³/min |
| Max. Inlet temperature | 260⁰C |
| Temperature precision | ±2⁰C |
| Nozzle type | Two fluid nozzle |
| Nozzle tip diameter | 2.0mm standard/(0.5/0.8/1.0/1.5 available) |
| Possible particle size range | 3-100µm |
| Capacity | 5000ml/hr |
| Min. sample volume | 100ml |
| Atomizer material | SUS 316 Stainless steel |
| Spray chamber material | SUS304 Stainless steel |
| Cyclone separator material | SUS304 Stainless steel |
| Receiving tank material | SUS304 Stainless steel |
| Body material | SUS304 Stainless steel |
| Seal of cyclone/cylinder | Silicone |
| Deblocking | Automatic |
| Display | 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency |
| Inert loop (for organic solvents) | Yes |
Why Pilotech?
Pilotech has over 20 years of manufacturing experience. Our team is constantly innovating to ensure our products remain at the forefront of the industry.
We ensure that every YC-019A Pilot Inert Loop Spray Dryer is tested to ensure it meets our performance standards.
Contact us today to learn more about YC-019A Pilot Inert Loop Spray Dryer . Our team is ready to help you select, customize, and implement the perfect solution for your application.
The capacity of YC-019A Pilot Inert Loop Spray Dryer is 5000ml/h.
YC-019A Pilot Inert Loop Spray Dryer can process both aqueous solutions and organic solvents.
Yes, it has a closed nitrogen circulation system, which is safe and reliable.
Yes. The compact design of YC-019A Pilot Inert Loop Spray Dryer occupies only 1.3 square meters, making it ideal for labs with limited space.
The minimum sample volume for YC-019A Pilot Inert Loop Spray Dryer is 100ml.
YC-019A Pilot Inert Loop Spray Dryer can produce particles from 3 to 100µm, which is suitable for a wide range of materials.
The maximum inlet air temperature of YC-019A Pilot Inert Loop Spray Dryer is 260°C, suitable for a variety of drying processes.
Yes, YC-019A Pilot Inert Loop Spray Dryer comes with a built-in cooling system.
The system monitors oxygen concentration in real time. If the oxygen level exceeds 2.5%, it will automatically shut down and trigger an alarm to ensure safety.
YC-019A Pilot Inert Loop Spray Dryer operates on a power supply of 11.5KW with a voltage of 380V, three-phase five-wire.
The lead time depends on the order quantity and customization. Usually, it takes 4 to 6 weeks to manufacture and send the equipment after the order is confirmed.
YC-019A Pilot Inert Loop Spray Dryer comes with a one-year warranty. Extended warranty options are also available upon request.
We provide 24/7 customer support through phone and email. Additionally, we offer remote diagnostics and troubleshooting to help resolve any issues promptly.
We provide global shipping through our logistics partners. You can choose between air, sea, or land freight depending on your location and urgency.
