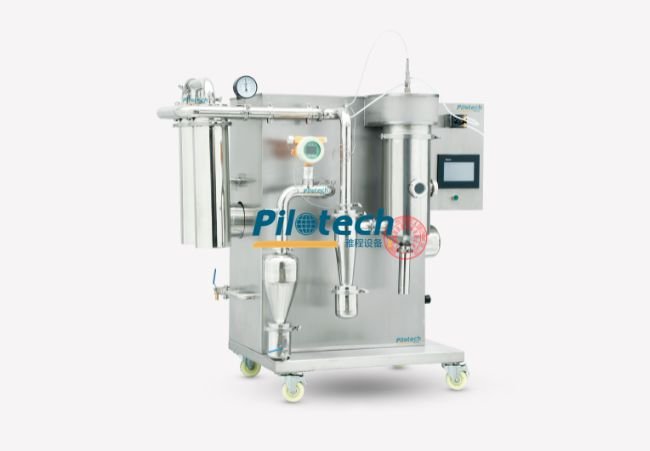

YC-015A Inert Loop Lab Spray Dryer
- First spray dryer for organic solvents.
- Easy to operate and install.
- With PLC control, LCD touchscreen operation.
- Equipped with oxygen monitoring system.
- Wide range of applications.
- Datasheet
- Video
| Sr.no | Parameter | Pilotech YC-015A Inert Loop Lab Spray Dryer |
| 1 | Power Supply | 3500W |
| 2 | Voltage | without chiller; 220V; single-phase;
with chiller; 380V; three-phase five-wire ; 50-60Hz |
| 3 | Capacity | 1500ml/h |
| 4 | Rated airflow | 1.5mᶟ/min |
| 5 | Min. Outlet temperature | 40℃(related to the boiling point of the solvent) |
| 6 | Max. inlet temperature | 200⁰C |
| 7 | Heater power | 3000W |
| 8 | Temperature precision | ±1⁰C |
| 9 | Nozzle jet | 1.0mm standard/(0.5/0.8/1.5/2.0mm available) |
| 10 | Nozzle type | Two fluid nozzle |
| 11 | Possible particle size range | 1-25µm |
| 12 | Minimum sample volume | 30ml |
| 13 | Inert loop (for organic solvents) | Yes |
Two Fluid Atomizer
Pilotech YC-015A Inert Loop Lab Spray Dryer is equipped with a dual-fluid atomizer made of SUS316L stainless steel, ensuring durability and corrosion resistance. It comes standard with a 1.0 mm nozzle, and other sizes are available to suit various application needs.
Filtration with Bag Filter
The bag filter provide filtration for laboratory applications. They are designed to facilitate filter bag replacement and maintenance. Bag filter systems are compact and saving space while being durable.
LCD Color Touchscreen Operation
The LCD color touchscreen operation provides an intuitive and user-friendly interface for easy control and monitoring of the system. Its high-resolution display provides clear visuals and real-time data for easy navigation through settings and parameters.
Pilotech Related Products
Complete Guide
to YC-015A Inert Loop Spray Dryer
With over 20 years of experience manufacturing high quality spray dryers, Pilotech has become a trusted name in the industry. Our commitment to innovation, quality and customer satisfaction has made us a global leader with exports to over 65 countries.
Shanghai Pilotech YC-015A Inert Loop Lab Spray Dryer has two designs for you to choose.
One is refrigerator built-in , and the other is refrigerator external (External refrigerator is optional).
The capacity of YC-015A Inert Loop Lab Spray Dryer is 1,500ml/h, and the minimum capacity is 30-50ml.
The use of YC-015A Inert Loop Lab Spray Dryer is very safe. The body of the machine is made of 304 stainless steel. For materials that may be corrosive to stainless steel, we can spray polytetranegative ethylene (F4) on the inner wall to meet different material requirements. We can also customize spray heads of different materials, such as some hydrochloric acid-resistant materials or resistant for other corrosive material materials, we can customize the spray head according to your needs. The spray head can also be customized as a three-fluid spray head according to the needs to meet the mixed drying needs of different materials.
YC-015A Inert Loop Lab Spray Dryer is equipped with oxygen monitoring system, nitrogen circulation system, solvent recovery system and solvent online discharge system. We need to set a safe value of oxygen concentration before the experiment. When the oxygen concentration in the system is high and when the value is lower than the set value, the system will not be able to start or stop automatically to ensure the safety of the experiment.
YC-015A Inert Loop Lab Spray Dryer is our first closed spray dryer with nitrogen circulation system.
YC-015A Inert Loop Lab Spray Dryer have sold more than 1,000 sets in China and abroad, and has been adopted by many well-known companies and universities. Such as Tsinghua University, Hong Kong University of Science and Technology, Guangzhou Automobile Group, Shanghai Pharmaceutical Group, Chinese Academy of Sciences and a lot more.
Now, let’s see its technical parameters
| Parameter | Pilotech YC-015A Inert Loop Lab Spray Dryer |
| Power Supply | 3500W |
| Voltage | without chiller; 220V; single-phase;
with chiller; 380V; three-phase five-wire ; 50-60Hz |
| Min. outlet temperature | 40℃(related to the boiling point of the solvent) |
| Capacity | 1500ml/h |
| Rated airflow | 1.5 mᶟ/min |
| Max. Inlet temperature | 200⁰C |
| Heater power | 3000W |
| Temperature precision | ±1⁰C |
| Nozzle jet | 1.0mm standard/(0.5/0.8/1.5/2.0mm available) |
| Nozzle type | Two fluid nozzle |
| Possible particle size range | 1-25µm |
| Mean Residence time | 1.0-1.5 sec |
| Max. Sample feed | 1500ml/hr |
| Minimum sample volume | 30ml |
| Spray chamber material | SUS304 Stainless steel |
| Cyclone separator material | SUS304 Stainless steel |
| Receiving tank material | SUS304 Stainless steel |
| Body material | SUS304 Stainless steel |
| Seal of cyclone/cylinder | Silicone |
| Gas type | N2 (for solvent)or compressed air(for aqueous) |
| Dimensions | 1050*1000*1500mm |
| Weight | 210KG |
| Display | 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency |
| Thermal protection | Blower does not stop until temp <90⁰C |
| Deblocking | Automatic |
| Inert loop (for organic solvents) | Yes |
Why Pilotech?
Pilotech has over two decades of experience. Our team of experts is constantly innovating to ensure our products are always at the forefront of the industry.
We adhere to the highest quality standards in both materials and manufacturing processes. Each YC-015A Inert Loop Lab Spray Dryer is rigorously tested to ensure it meets our stringent performance standards.
Contact us today to learn more about YC-015A Inert Loop Lab Spray Dryer and how it can meet your specific needs. Our team of experts is ready to assist you in selecting, customizing, and implementing the perfect solution for your application.
The capacity of YC-015A Inert Loop Lab Spray Dryer is 1,500 ml/h, minimum capacity is 30-50 ml.
YC-015A Inert Loop Lab Spray Dryer is made of SUS304 stainless steel, and SUS316 stainless steel is available for applications involving particularly corrosive materials. The drying chamber is equipped with a glass observation window for easy monitoring.
The built-in oxygen monitoring system requires the user to set a safe oxygen concentration threshold to ensure safety. If the oxygen level exceeds this threshold, the system will automatically shut down or prevent startup.
The nitrogen circulation system keeps the dryer inert gas, reducing the risk of oxidation and explosion. The YC-015A Inert Loop Lab Spray Dryer is particularly suitable for drying organic solvents.
Of course. Our standard nozzle is 1.0 mm, and we also offer other nozzle options such as 0.5/0.8/1.5/2.0 mm. We can also provide three-fluid nozzles for special applications.
YC-015A Inert Loop Lab Spray Dryer’s Key safety features include an oxygen monitoring system, nitrogen circulation system, solvent recovery system, and online solvent discharge system. These features ensure safe operation and compliance with safety standards.
YC-015A Inert Loop Lab Spray Dryer comes with a one-year warranty.
Delivery times vary depending on the customization requirements and current production schedule. Typically, standard units are delivered within 4-6 weeks.
To purchase YC-015A Inert Loop Lab Spray Dryer, please contact our sales team through our website or email. We will assist you in selecting the right configuration and customization options to meet your specific needs.
