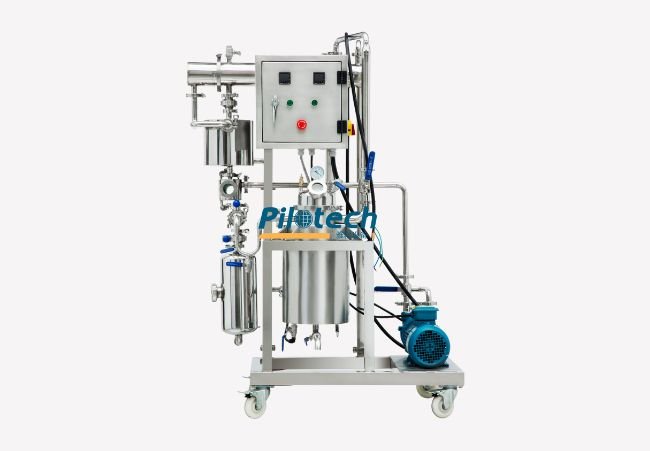

YC-010 Herb Extractor
- The coverage area is small, only 1㎡.
- Made of SUS304 stainless steel.
- The heat transfer oil is circulated and heated evenly.
- Combined multifunctional extractor, vacuum concentration and solvent recovery in one.
- Suitable for the extraction of natural products, traditional Chinese medicine, tea, coffee, condiments and food additives, etc.
- Datasheet
- Video
| Sr.no | Parameter | Pilotech YC-010 Herb Extractor |
| 1 | Power Supply | 4500W |
| 2 | Voltage | 380V |
| 3 | Extraction tank volume | 10L |
| 4 | Machine Material | SUS 304 Stainless Steel |
| 5 | Evaporation chamber vacuum degree | 0~-0.08MPa |
| 6 | Precision of temperature | ±2℃ |
| 7 | Cooling water | 0.5t/h |
| 8 | Cooling water pressure | ＜0.3pa |
| 9 | Coiled tube condenser area | 0.5㎡ |
| 10 | Dimension | 1150*800*
1600mm (Reference Size) |
| 11 | Configuration | Stainless steel extractor（10L), Tube array condensator, coiled tube condenser, oil-water separator, pipeline sight glass, Stainless steel water ring pump, Omron temperature controller, Stainless steel extract blue, electric heater, Sanitary safety valve, control cabinet, connection with pipe Tube Fitting Valve |
Temperature Controller
The temperature controller can adjust the temperature in real time. It has a display screen and adjustment buttons to facilitate users to monitor and adjust in real time.
Extraction Tank
It integrates extraction, concentration and solvent recovery into one machine. It has hot reflux cycle extraction and concentration, and is easy to operate.
Pilotech Related Products
Complete Guide
to YC-010 Herb Extractor FAQs
The feeding amount of YC-010 Herb Extractor is 0.3 to 1.5 kg/batch.
Pilotech YC-010 Herb Extractor has a compact footprint of only 1 square meter.
The concentration ratio of YC-010 Herb Extractor can reach 1.1~1.38.
Yes, it can perform hot reflux extraction, percolation extraction, conventional extraction, and concentration.
The extractor tank has a capacity of 10 liters.
It can process various materials, including herbal medicine, tea leaves, fruit juices, and other plant-based substances.
Yes, it requires only water and electricity connections and is user-friendly, making it easy to install and operate.
You can purchase Pilotech YC-010 Herb Extractor directly by contacting our sales team via email, phone, or through our official website. We will guide you through the ordering process.
Yes, Pilotech offers international shipping. We can arrange shipping to most countries worldwide. Shipping costs and shipping times will vary depending on your location.
Yes, we offer custom options to meet your specific extraction requirements. Please contact us to discuss your needs.
