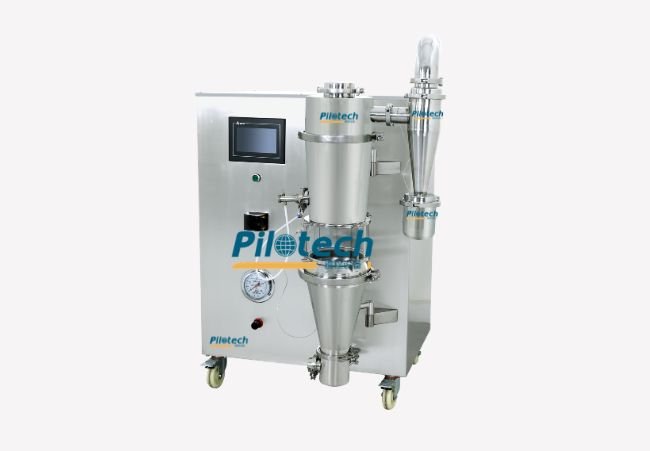

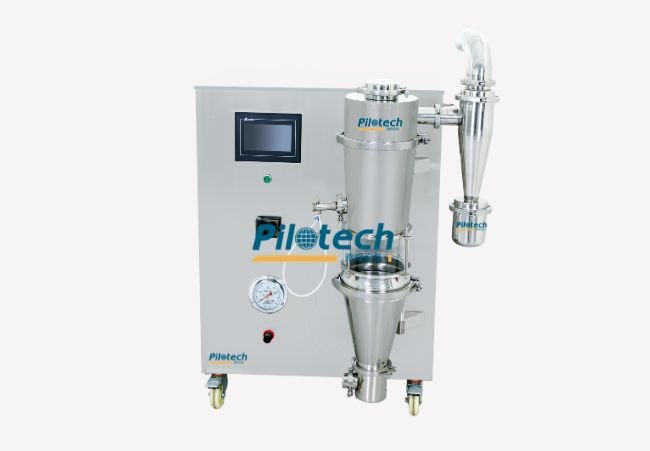

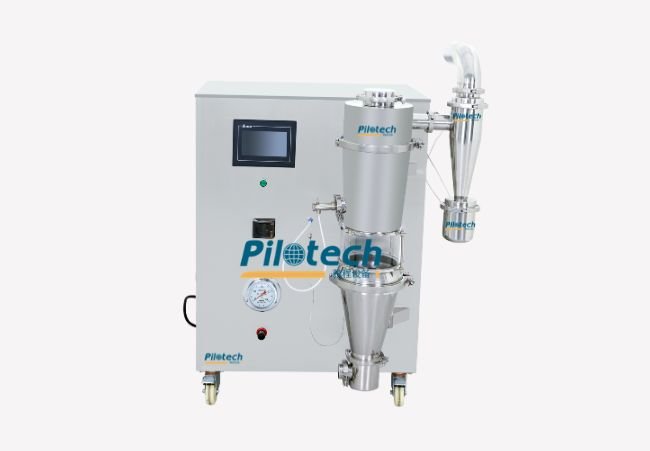

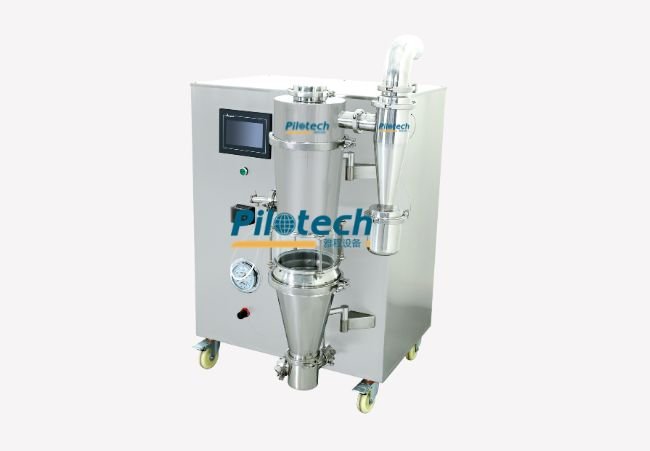

YC-1800低温喷雾干燥机
针对含糖物料干燥时的粘壁现象，我们研发了YC-1800低温喷雾干燥机，显著改善了这一问题。
- 紧凑设计，节省空间。
- 低温喷雾干燥，不粘壁。
- 实现1-25微米的颗粒尺寸。
- 触摸屏可实时设置和调整参数。
- 适用于干燥中药、天然产物、酶制剂和耐热聚合物等物料。
- 表格
- 视频
| 序号 | 参数 | 上海雅程YC-1800低温喷雾干燥机 |
| 1 | 电源 | 4000W |
| 2 | 电压 | 220V; 单相; 50-60 Hz |
| 3 | 最大处理量 | 1500ml/h |
| 4 | 额定风量 | 1.5mᶟ/min |
| 5 | 粒径范围 | 1-25µm |
| 6 | 最大进风温度 | 200⁰C |
| 7 | 最小样品量 | 30ml |
| 8 | 温度精度 | ±1⁰C |
| 9 | 喷嘴内径 | 标准 1.0mm/(0.5/0.8/1.5/2.0mm 可选) |
| 10 | 喷雾头类型 | 二流体（三流体可选） |
上海雅程推荐
YC-1800低温喷雾干燥机
完整指南
We found that when extracting sugary materials, such as traditional Chinese medicine extracts, natural herbal extracts and other materials, there was sticking on the inner wall.
After many experiments, we found that when extracting sugary materials, materials are easy to melt at high temperature, and adhere to the inner wall to cause sticking.
So we tried to reduce the inlet air temperature of the spray dryer, the minimum inlet air temperature is reduced from 150°C to 105°C, and reduced the outlet temperature to 60 degrees, It’s completely solved the problem of sugary materials sticking to the inner wall at high temperature.
Since YC-1800 Low Temperature Mini Spray Dryer was launched, it has a good drying effect, including traditional Chinese medicines and natural herbal products, enzyme preparations, and heat-labile polymer materials, and the materials will not deform or modified during low temperature drying.
What is the difference between YC-1800 Low Temperature Mini Spray Dryer and previous spray dryers?
During our research and development of YC-1800 Low Temperature Mini Spray Dryer, On the basis of the previous spray dryer, we added two spray heads to the equipment, There are top spray head and bottom spray head, mainly for the convenience of drying different materials and ensuring the recovery rate.
we also added one extra option, which is fluid bed drying, It’s suitable for damp materials or materials that are not completely dried.
The drying chamber of the previous spray dryer is usually made of stainless steel or glass, But YC-1800’s drying chamber of the fluid bed is made of stainless steel and high borosilicate glass, which is ensure the durability of the drying chamber and conducive to the observation of the whole experiment.
What’s the benefit of YC-1800 Low Temperature Mini Spray Dryer?
- It doesn’t take a lot of space.
YC-1800 Low Temperature Mini Spray Dryer it covers an area of less than one square meter, It saves space and is a compact equipment.
- It’s very convenient to move.
YC-1800 Low Temperature Mini Spray Dryer it has wheels to move freely and the wheels have brakes. It’s very convenient to move around.
- It’s easy to set parameters and operate.

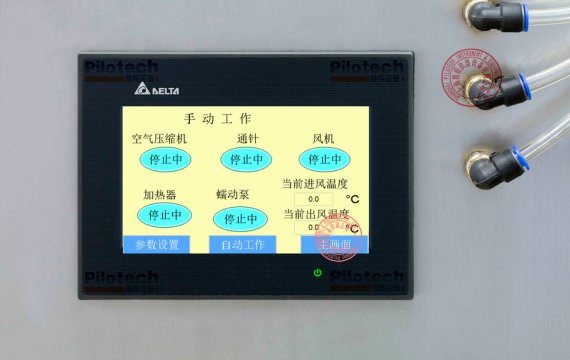

YC-1800 Low Temperature Mini Spray Dryer it has PLC controller and LCD touch screen, all parameters can be set on the touch screen. It has English interface, It’s very convenient to operate.
- The particle size is small after spray drying.
The particle size after drying with YC-1800 Low Temperature Mini Spray Dryer can be 1-25 microns.
- It has a wide range of application industries
YC-1800 Low Temperature Mini Spray Dryer is suitable for different industries such as food, medicine, chemical industry, ceramics, energy, new materials and a lot more.
Technical Specifications
| Parameter | Pilotech YC-1800 low temperature mini spray dryer |
| Power Supply | 4000W |
| Voltage | 220V; single-phase |
| Frequency | 50/60 Hz |
| Capacity | 1500ml/h for water |
| Rated airflow | 1.5 mᶟ/min |
| Max. Inlet temperature | 200⁰C |
| Heater power | 3000W |
| Temperature precision | ±1⁰C |
| Nozzle jet | 1.0mm standard/(0.5/0.8/1.5/2.0mm available) |
| Nozzle type | Two fluid nozzle |
| Possible particle size range | 1-25µm |
| Mean Residence time | 1.0-1.5 sec |
| Max. Sample feed | 1500ml/hr |
| Minimum sample volume | 30ml |
| Atomizer material | SUS 316 Stainless steel |
Experience the difference the YC-1800 Low Temperature Mini Spray Dryer can make in your lab today. Contact Pilotech today to learn more about how we can meet your specific needs. Our dedicated team is ready to assist you in selecting the right configuration.
For more information, visit our website or contact our customer service team. Enhance your drying process and achieve reliable product quality with the YC-1800 Low Temperature Mini Spray Dryer from Pilotech.
YC-1800 low temperature mini spray dryer is a spray drying machine designed for low temperature drying of sensitive materials such as Chinese medicine extracts, natural herbal extracts, enzyme preparations, and thermally unstable polymer materials.
- Low inlet and outlet air temperatures prevent material sticking.
- Top and bottom spray heads for uniform drying.
- Fluidized bed drying option.
- Durable stainless steel and borosilicate glass drying chamber.
- Compact design for mobility and user-friendly touch screen controls.
By reducing the inlet air temperature to 105°C and the outlet temperature to 60°C, YC-1800 Low Temperature Mini Spray Dryer ensures that sugar-containing materials do not melt and stick to the chamber walls.
The YC-1800 low temperature mini spray dryer can produce dry particles ranging from 1 to 25 microns.
The YC-1800 low-temperature mini spray dryer has a compact structure and occupies less than one square meter, saving valuable laboratory space.
Yes, the YC-1800 Low Temperature Mini Spray Dryer is suitable for drying sensitive chemicals, polymers, catalysts and advanced materials.
It is recommended to clean the drying chamber and inspect components regularly to ensure optimum performance. Pilotech offers comprehensive maintenance guidelines and customer support for the YC-1800 Low Temperature Mini Spray Dryer.
YC-1800 low temperature mini spray dryer can be purchased directly from Pilotech. For more information on purchasing options, contact Pilotech support team.
Yes, we offer customization options to meet specific drying requirements, including the addition of the fluid bed dryer and other features.
The lead time for YC-1800 Low Temperature Mini Spray Dryer varies depending on current demand and customization requirements. Typically, the lead time ranges from 4 to 6 weeks. Our sales team will provide an estimated delivery date when you place your order.
Yes, we ship YC-1800 Low Temperature Mini Spray Dryer globally. We have extensive experience in international shipping and will ensure that your order is delivered safely and efficiently to your location.
YC-1800 Low Temperature Mini Spray Dryer comes with a standard one-year warranty. Our customer support team is always available to address any issues or questions you may have.
