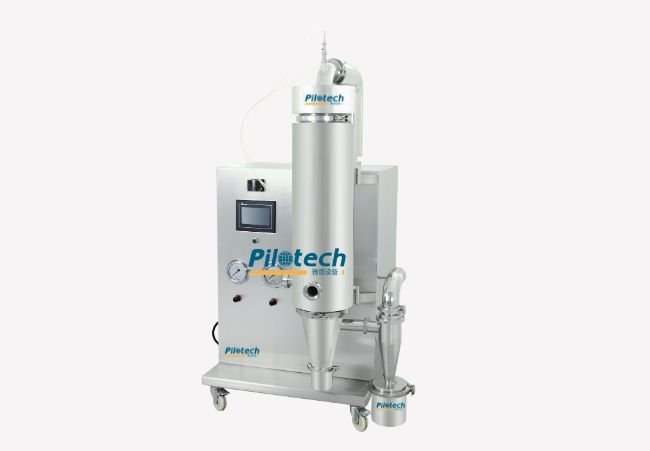

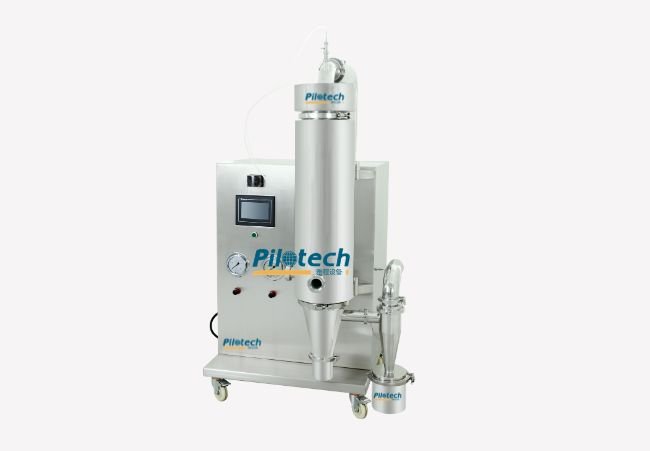

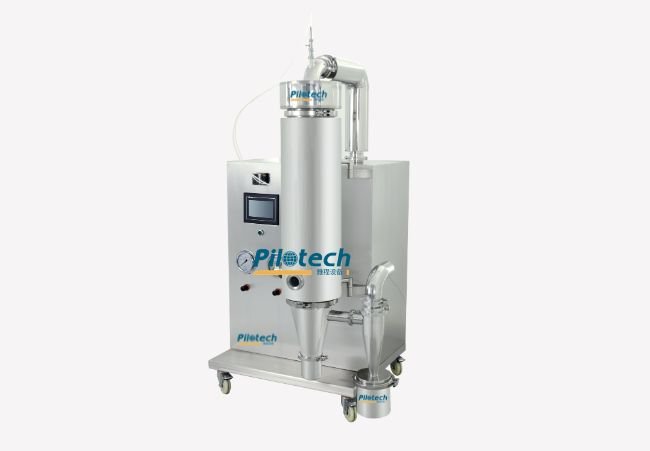

Milk Powder Spray Dryer Model: YC-018
- It is very easy to install and remove.
- The particle size range can reach 1-80 microns.
- Easy-to-operate touchscreen for setting parameters.
- Maximum capacity can reach up to 3000 ml/h.
- It has a wide range of applications, such as food, medicine, new energy, ceramics, etc.
- Datasheet
- Video
| Sr.no | Parameter | Pilotech YC-018 Milk Powder Spray Dryer |
| 1 | Power Supply | 5500W |
| 2 | Voltage | 220V; single-phase；50/60 Hz |
| 3 | Capacity | 3000ml/hr |
| 4 | Rated airflow | 2m³/min |
| 5 | Max. inlet temperature | 280⁰C |
| 6 | Heater power | 5000W |
| 7 | Nozzle jet | 1.5mm standard/(0.5/0.8/1.0/2.0mm available) |
| 8 | Nozzle type | Two fluid nozzle |
| 9 | Possible particle size range | 1-80µm |
| 10 | Minimum sample volume | 100ml |
| 11 | Inert loop (for organic solvents) | Optional |
| 12 | Body material | SUS-304 Stainless steel |
Efficient Peristaltic Pump
High-efficiency peristaltic pump provides precise, consistent liquid delivery, ensuring accurate dosing and reducing waste. Feed tubes can be easily replaced and cleaned.
Easily Detachable Components
It features removable parts such as cyclone separator, collecting bottle and clamp. The cyclone separator ensures efficient separation of particles. The collecting bottle can be easily removed for quick sample collection. The clamp can be easily assembled and disassembled.
Precise Atomization Pressure Gauge
Equipped with a precise atomization pressure gauge, the clear and easy-to-read display allows real-time monitoring and adjustment.
Pilotech Related Products
Complete Guide
to YC-018 Milk Powder Spray Dryer
The YC-018 Milk Powder Spray Dryer has a recovery rate of up to 92%. And the YC-018 Milk Powder Spray Dryer only takes up one square meter of space, making it an excellent choice for laboratories with limited space. In addition, its power is 220V, 5.5KW.
What Are The Key Features of YC-018 Milk Powder Spray Dryer?
The YC-018 Milk Powder Spray Dryer is designed for small lab spaces. It occupies less than one square meter and can be easily operated. The capacity of YC-018 Milk Powder Spray Dryer is 3000 ml/h.
One of the features of the YC-018 Milk Powder Spray Dryer is its high recovery rate. Conventional laboratory spray dryers often have difficulty achieving recovery rates, even when equipped with multiple cyclones. The YC-018 Milk Powder Spray Dryer has been designed by the team to maximize recovery efficiency, with a recovery rate of up to 92%.
The maximum inlet air temperature of the YC-018 Milk Powder Spray Dryer is 280°C, which is ideal for drying materials that require high temperatures, such as ceramics. The minimum inlet air temperature is 105°C, which is ideal for drying heat-sensitive materials, such as traditional Chinese medicine and natural product extracts. The YC-018 Milk Powder Spray Dryer is able to handle a wide range of drying requirements.
YC-018 milk powder spray dryer is equipped with three-fluid atomizer as standard and can be equipped with three-fluid atomizer as option. The standard nozzle diameter is 1.5 mm, and other options (0.5 mm, 0.8 mm, 1.0 mm, 2.0 mm) can be selected to meet specific needs.
YC-018 Milk Powder Spray Dryer is equipped with a color LCD touch screen, which can display basic parameters such as inlet air temperature, outlet temperature, peristaltic pump, blower and needle frequency. Parameters can be easily operated and modified in real time.
Unlike conventional laboratory spray dryers that typically produce particles in the 1-25 micron range, the YC-018 Milk Powder Spray Dryer can produce particles as large as 80 microns. This makes it an excellent choice for applications that require larger particle sizes, such as catalyst preparation.
The drying chamber, cyclone separator, collecting bottle and collecting tank of YC-018 milk powder spray dryer are all made of SUS304 stainless steel to ensure durability and corrosion resistance.
The following table is the technical specifications of YC-018 Milk Powder Spray Dryer:
| Parameter | Pilotech YC-018 Milk Powder Spray Dryer |
| Power Supply | 5500W |
| Voltage | 220V; single-phase |
| Frequency | 50/60 Hz |
| Max. Inlet temperature | 280⁰C |
| Capacity | 3000ml/hr |
| Compressed air | 32L/min, 0.5-2 bar |
| Rated airflow | 2m³/min |
| Nozzle type | Two fluid nozzle |
| Nozzle jet | 1.5mm standard/(0.5/0.8/1.0/2.0mm available) |
| Heater power | 5000W |
| Possible particle size range | 1-80µm |
| Mean Residence time | 1.0-1.5 sec |
| Max. Sample feed | 3000ml/hr |
| Min. sample volume | 100ml |
| Seal of cyclone/cylinder | Silicone |
| Temperature control | PLC controller |
| Body material | SUS-304 Stainless steel |
| Dimensions | 1050*1000*1770mm |
| Display | 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency |
| Thermal protection | Blower does not stop until temp <90⁰C |
| Deblocking | Automatic |
| Inert loop (for organic solvents) | Optional |
For more information or to request a quote, please visit our website or contact our sales team. Let’s work together to achieve your laboratory goals with YC-018 Milk Powder Spray Dryer.
The maximum inlet temperature is 280°C, which is suitable for drying materials that require high temperatures such as ceramics.
The capacity of YC-018 Milk Powder Spray Dryer is max. 3000 mL/h, minimum capacity is 100ml.
YC-018 Milk Powder Spray Dryer boasts a high recovery rate of up to 92%.
YC-018 Milk Powder Spray Dryer has a wide range of uses and can process a variety of materials including milk, ceramics, biomaterials, food and pharmaceuticals.
The drying chamber, cyclone separator, collection bottle, and collection pipe are all made of SUS304 stainless steel, ensuring durability and resistance to corrosion.
The standard nozzle diameter is 1.5mm, but other options are available: 0.5mm, 0.8mm, 1.0mm, and 2.0mm to suit specific needs.
YC-018 Milk Powder Spray Dryer can produce particles ranging from 1 to 80 microns, making it suitable for applications requiring different particle sizes.
Absolutely. YC-018 milk powder spray dryer is widely used in research institutes and universities for drying small quantities of materials due to its compact size, high recovery rate, and versatility.
YC-018 Milk Powder Spray Dryer comes with a standard one-year warranty. Contact us for more information.
Download our comprehensive product catalog from our website or request a printed version by contacting our customer service team.
You can visit our website or contact our sales team for more information or to request a quote.
Yes, we welcome visits to our facility. Schedule an appointment with our sales team to tour our production facility and see the YC-018 Milk Powder Spray Dryer in operation.
