Vacuum Belt Dryer

Complete Guide
to Pilotech Vacuum Belt Dryer

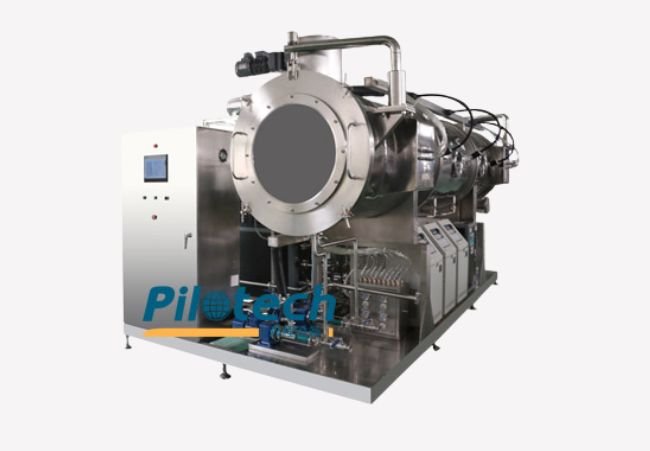

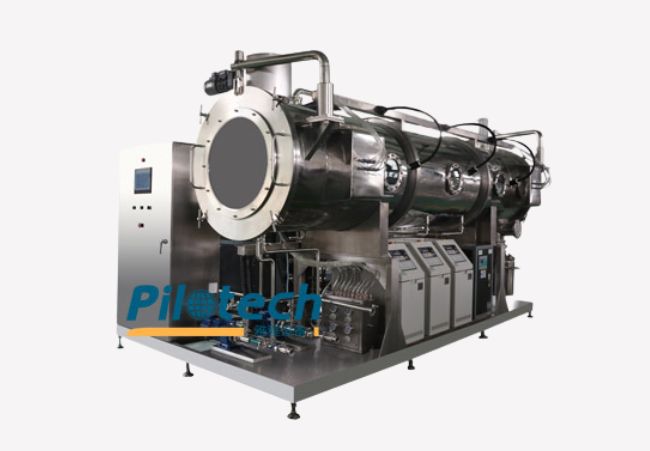

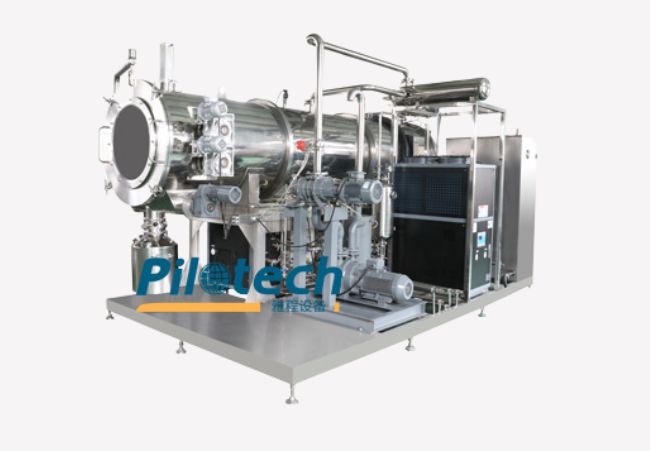

Pilotech has developed the Vacuum Belt Dryer, a cutting-edge solution for continuous feeding and discharging under vacuum conditions. Pilotech Vacuum Belt Dryer completes drying and pulverization in a vacuum state and is highly effective for drying materials with high viscosity, such as traditional Chinese medicine extracts. The vacuum belt dryer begins discharging within 30-60 minutes, with a powder yield rate of 99%.

The success of Pilotech Vacuum Belt Dryer is a game-changer for industries such as traditional Chinese medicine, pharmaceutical intermediates, fine chemicals, food, and health products. Pilotech Vacuum Belt Dryer has become the ideal replacement for both spray drying and vacuum oven drying. In the Chinese medicine sector, Pilotech Vacuum Belt Dryer has shown excellent results with materials like Salvia miltiorrhiza, compound Salvia, Chuanxiong, Angelica, Andrographis, Ganoderma, Sophora flavescens, Ginseng, and Acanthopanax. In the food and health product sector, it has been used for coffee, malt extract, fruit powder, instant milk powder, and instant tea. It also demonstrates excellent application in the fine chemical, pigment, and pesticide industries.

Advantages of the Pilotech Vacuum Belt Dryer

Pilotech vacuum belt dryer offers low drying temperatures, continuous production, and minimal loss during the drying process. Its easy operation significantly reduces labor intensity and saves a large amount of energy. Compared to vacuum drying ovens with the same output, it saves 65% on electricity and 70% on steam. Compared to spray dryers with the same output, it saves 75% on electricity and 85% on steam.

Working Principle of Pilotech Vacuum Belt Dryer

The material to be dried is fed into the vacuum chamber of the vacuum belt dryer by a screw metering pump and evenly spread on the conveyor belt by a spreading motor. The specially designed roller shaft drives the conveyor belt to run at a preset speed. Independent heating and cooling plates are provided under the conveyor belt to ensure close contact and efficient heat transfer. The conveyor belt speed is adjusted according to the properties of the material. The material is dried and cooled as it is conveyed from one end of the cylinder to the other. After drying, the material is stripped from the conveyor belt, crushed, and discharged through a butterfly valve. The resulting powder can be directly used for capsule filling or tableting.

The entire system is controlled by a PLC with a user-friendly PC-based human-machine interface (HMI). The on-site touch screen panel allows real-time adjustment and monitoring of process parameters, production data and other settings.

Main Features of Pilotech Vacuum Belt Dryer

1. Low drying temperature and low energy consumption: continuous production, automatic control, in compliance with GMP requirements.

2. Adjustable drying temperature: depending on the material characteristics, the temperature can be adjusted between 35°C and 90°C.

3. Good crystallinity during drying: The particles produced after crushing have good fluidity and are suitable for direct filling of capsules.

4. Precise adjustment of feed amount: Even if the feed amount is small, the spreading device can ensure uniform distribution.

5. Independent conveyor belt control: Each conveyor belt is individually controlled by a variable frequency motor.

6. Automatic granulation: The dried particles are continuously discharged into the storage container under vacuum conditions. The container can be replaced during the automatic drying process.

7. Low energy consumption and low noise: Efficient and quiet operation.

8. Frequency conversion control of belt movement: Equipped with tension adjustment and tracking correction.

9. Stirring and temperature control: The system is equipped with a heating and stirring device for adding and stirring auxiliary materials.

10. PC control system: humanized interface, simple process control, and flexible parameter modification.

11. Customizable number of conveyor belt layers: 1-10 layers, which can be customized according to user requirements.
