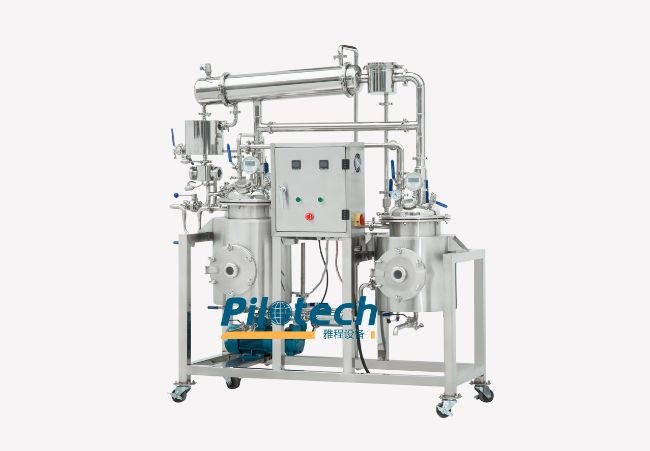

YC-050 Herbal Extractor
- WIth high capacity of 50L.
- Integrates extraction and vacuum concentration in one unit.
- PID temperature control with an accuracy of ±2°C.
- Made of SUS304 stainless steel.
- Concentration efficiency reaches 1.1–1.38.
- Datasheet
- Video
| Sr.no | Parameter | Pilotech YC-050 Herbal Extractor |
| 1 | Power Supply | Three-phase five-wire; 18KW. |
| 2 | Voltage | 380V |
| 3 | Extraction tank volume | 50L |
| 4 | Machine Material | SUS 304 Stainless Steel |
| 5 | Evaporation chamber vacuum degree | 0~-0.08MPa |
| 6 | Precision of temperature | ±2℃ |
| 7 | Cooling water | 2t/h |
| 8 | Cooling water pressure | ＜0.3pa |
| 9 | Coiled tube condenser area | 2㎡ |
| 10 | Dimension | 1850*1000*1980mm (Reference Size) |
| 11 | Configuration | Stainless steel extractor（50L), Tube array condensator, coiled tube condenser, oil-water separator, pipeline sight glass, Stainless steel water ring pump, Omron temperature controller, Stainless steel extract blue, electric heater, Sanitary safety valve, control cabinet, connection with pipe Tube Fitting Valve |
Pilotech Related Products
Complete Guide
to YC-050 Herbal Extractor FAQs
YC-050 Herbal Extractor has a capacity of 50 liters, allowing larger batch extractions compared to smaller models.
YC-050 Herbal Extractor is made of SUS304 stainless steel, ensuring high durability, corrosion resistance and safety for herbal extraction.
YC-050 Herbal Extractor integrates multi-functional extraction with vacuum concentration and features a thermal reflux circulation function.
The heating power requirement for YC-050 herbal extractor is 380V/18KW.
YC-050 Herbal Extractor requires 2t/h of cooling water, with a maximum pressure of <0.3MPa.
YC-050 Herbal Extractor system includes a stainless steel extraction tank (50L), a tubular condenser (with a condensing area of 2㎡), an oil-water separator for volatile aromatic oils, a sight glass, a water ring vacuum pump, an Omron temperature controller, a vacuum gauge, an electric heater, a sanitary-grade safety valve, an electric control cabinet, and necessary connecting pipes and valves.
The concentration ratio of YC-050 Herbal Extractor ranges from 1.1 to 1.38.
YC-050 Herbal Extractor is securely packaged in a wooden crate with protective padding to prevent any damage during transportation.
Yes, we offer international shipping to various countries. Please contact us for specific shipping details to your location.
YC-050 Herbal Extractor comes with a standard 1-year warranty.
Yes, we offer an option to extend the warranty period. Please contact us for details about the extended warranty plans.
