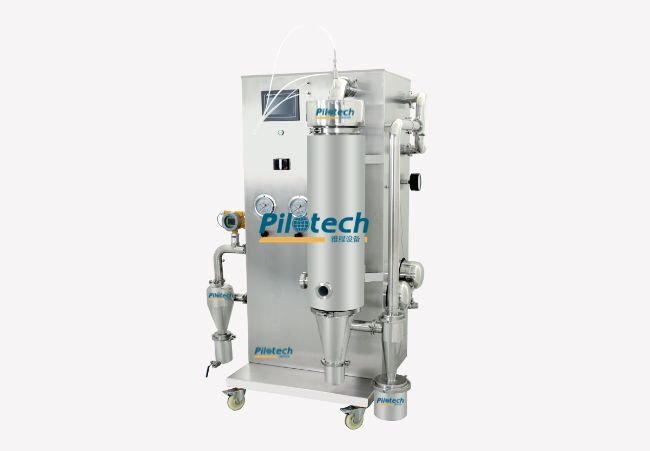

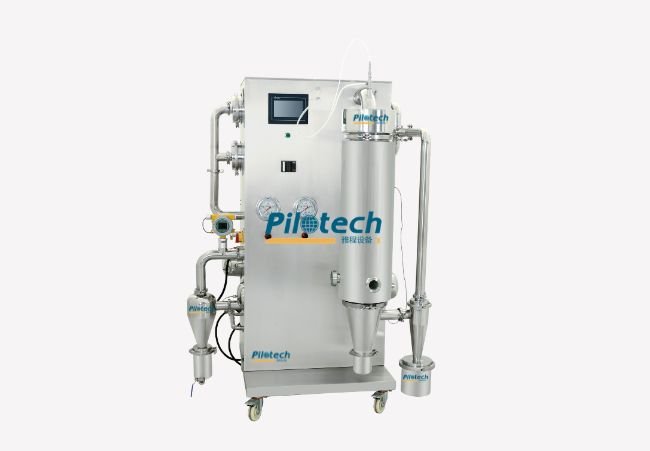

Lab Spray Drying Machine Model: YC-018A
- Max. capacity is 3000mL/H.
- Only 50ml material can complete a experiment.
- Particle sizes ranging from 1 to 80 micrometers.
- Equipped with a safe nitrogen circulation system.
- Easy setting of parameters on the touch screen.
- Datasheet
| Sr.no | Parameter | Pilotech YC-018A Spray Drying Machine |
| 1 | Power Supply | 5500W |
| 2 | Voltage | without chiller; 220V; single-phase;
with chiller; 380V; three-phase five-wire ; 50-60Hz |
| 3 | Capacity | 3000ml/h |
| 4 | Rated airflow | 1.5mᶟ/min |
| 5 | Min. Outlet temperature | 40°C(related to the boiling point of the solvent) |
| 6 | Max. inlet temperature | 250⁰C |
| 7 | Heater power | 4500W |
| 8 | Possible particle size range | 1-80µm |
| 9 | Nozzle jet | 1.0mm standard/(0.5/0.8/1.5/2.0mm available) |
| 10 | Nozzle type | Two fluid nozzle |
Solvent Recovery System
Equipped with an efficient solvent recovery system designed to minimize waste and environmental impact. This system captures and condenses the solvent vapors during the drying process, allowing for the safe collection.
Nitrogen Circulation System
It features an advanced nitrogen circulation system to ensure safety and efficiency. When used for aqueous solutions, the nitrogen system can be turned off to save resources, relying instead on air atomization and heating. For organic solvent applications, the system features an oxygen concentration monitor that prevents the machine from starting or running if oxygen levels exceed safe limits, ensuring optimal safety.
LCD Color Touch Screen
Our touch screen offers customizable language options, including Chinese and English, and allows all parameters to be easily adjusted through a user-friendly interface. In addition, it includes a USB port for convenient data logging and direct connection to a printer, allowing for efficient data management and reporting.
Pilotech Related Products
Complete Guide
to YC-018A Spray Drying Machine
Welcome to read the complete guide of YC-018A Spray Drying Machine.
YC-018A is a mini pilot scale inert loop spray drying machine. Its capacity is between that of the common laboratory spray dryer and the pilot scale spray dryer. The maximum capacity is 3L/h, and the minimum 50ml of the material can complete one experiment.
The particle size range of YC-018A Spray Drying Machine after drying is 1-80 microns, which can adapt to different particle requirements.
YC-018A Spray Drying Machiner has a maximum air inlet temperature range of 280 degrees, and is suitable for spray drying of aqueous solutions and most organic solvents. Because the inlet air temperature can be set to a higher temperature, YC-018A Spray Drying Machine is suitable for spray drying of organic solvents with a higher concentration.
YC-018A Spray Drying Machine has a built-in nitrogen circulation system. When it is used for spray drying of aqueous solution, the nitrogen circulation system can be closed, and air atomization and heating can be used to save the use of nitrogen. When used for spray drying of organic solvents, we can set the safety value of oxygen concentration. When the oxygen content in the system is higher than the safety value we set, the system cannot be turned on. The time the equipment is working, when the oxygen content in the system reaches the safety value we set, the control system will stop forcibly to ensure the safety of the equipment.
YC-018A Spray Drying Machine is controlled by the touch screen. The current language of the touch screen is Chinese or English, and we can also customize other languages for you. All parameters can be changed through man-machine dialogue, and the setting is very simple. In addition, there is a USB interface on the touch screen, and the experimental data can be downloaded to a USB flash drive, or it can be directly printed out by connecting to a printer.
Technical Specifications
| Parameter | Pilotech YC-018A Spray Drying Machine |
| Power Supply | 5500W |
| Voltage | without chiller; 220V; single-phase;
with chiller; 380V; three-phase five-wire ; 50-60Hz |
| Min. Outlet temperature | 40°C(related to the boiling point of the solvent) |
| Max. Inlet temperature | 200⁰C |
| Capacity | 3000ml/h |
| Rated airflow | 1.5m³/min |
| Nozzle type | Two fluid nozzle |
| Nozzle jet | 1.5mm standard/(0.5/0.8/1.0/2.0mm available) |
| Heater power | 4500W |
| Possible particle size range | 1-80µm |
| Temperature precision | ±2⁰C |
| Max. Sample feed | 3000ml/hr |
| Min. sample volume | 100ml |
| Seal of cyclone/cylinder | Silicone |
| Spray chamber material | SUS-304 Stainless steel |
| Body material | SUS-304 Stainless steel |
| Receiving tank material | SUS-304 Stainless steel |
| Cyclone separator material | SUS-304 Stainless steel |
| Gas type | N₂(for solvent)or compressed air(for aqueous) |
| Dimensions | 1050*1000*1750mm |
| Display | 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency |
| Thermal protection | Blower does not stop until temp <90⁰C |
| Weight | 280kg |
| Inert loop (for organic solvents) | Optional |
Whether you are engaged in pharmaceutical, food processing or chemical research, the YC-018A Spray Drying Machine can meet your specific needs with precision and reliability. Pilotech is the trusted choice of more than 3,500 customers worldwide. Our machines have been exported to more than 65 countries and regions, including the United States, Italy, South Korea, Mexico, Singapore, Canada, Malaysia, Chile and Russia.
Contact Pilotech today to learn more about the YC-018A Spray Drying Machine. Visit our website or contact our sales team for a personalized consultation.
The maximum capacity of YC-018A Spray Drying Machine is 3000mL/H.
YC-018A Spray Drying Machine can operate with a minimum sample volume of 50ml.
YC-018A Spray Drying Machine can produce particles with sizes ranging from 1 to 80 microns.
YC-018A Spray Drying Machine is suitable for efficient treatment of aqueous solutions and most organic solvents.
The nitrogen cycle system maintains a closed-loop operation, ensuring safe drying of flammable and explosive solvents by preventing oxygen from entering the system.
YC-018A Spray Drying Machine features continuous oxygen concentration monitoring, automatically shuts down if oxygen levels exceed a preset safety threshold, and is equipped with a nitrogen circulation system to ensure safe operation.
YC-018A Spray Drying Machine achieves a high material recovery rate of up to 92%, ensuring minimal waste and high efficiency.
YC-018A Spray Drying Machine uses a two-fluid nozzle made of SUS316L stainless steel, with a standard diameter of 1.5mm, other sizes like 0.5/0.8/1.0/2.0mm are optional.
YC-018A Spray Drying Machine comes with a standard one-year warranty. Extended warranty options are also available upon request.
YC-018A Spray Drying Machine is carefully packaged and shipped using reliable international freight services. We ensure that all components are securely packed to prevent any damage during transit. Upon shipment, you will receive a tracking number to monitor the delivery status.
To purchase the YC-018A Spray Drying Machine, you can contact our sales team directly through our website. Our sales representatives will provide you with all the necessary information, including pricing, delivery options, and any additional customization requirements you may have. We look forward to assisting you with your purchase and ensuring you have the best equipment for your needs.
Spare parts for the YC-018A Spray Drying Machine can be purchased directly from Pilotech. You can contact our sales team via our website. Our team will assist you in identifying and obtaining the necessary parts.
