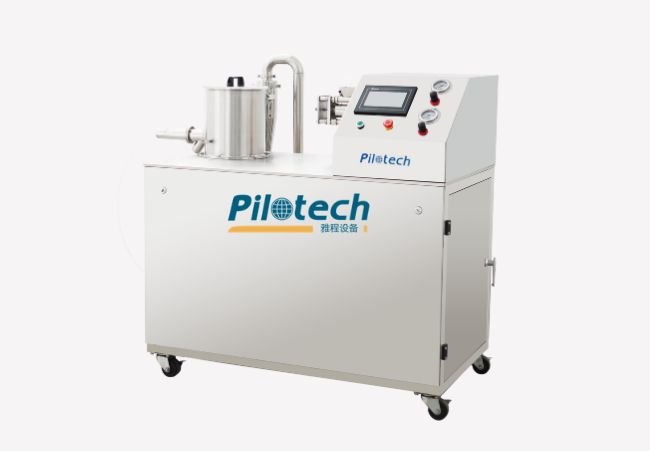

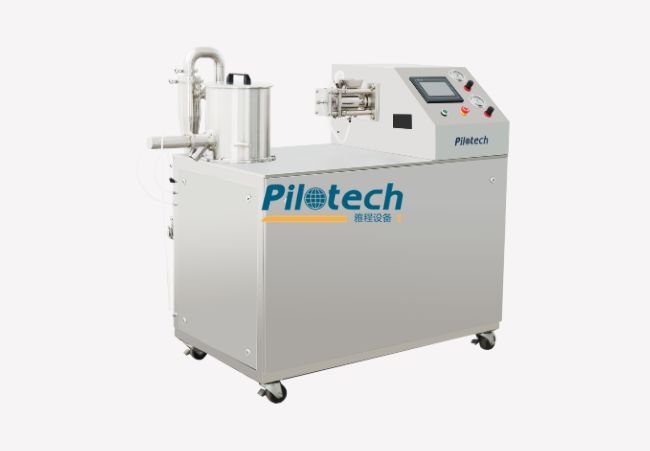

YC-910 Extruder Spheronizer
- Up to 95% yield rate.
- High production efficiency.
- Made from SUS304 stainless steel.
- Extrusion, spheronization, drying, and coating all in one.
- Features an ice water cooling system that prevents heat-sensitive materials from degrading during extrusion.
- Datasheet
- Video
| Parameter | Pilotech YC-910 Extrusion Spheronizer |
| Power Supply | Three-phase five-wire; 6KW. |
| Voltage | 380V |
| Capacity | 1-3KG/H |
| Extrusion speed | 50RPM |
| Spheronization speed | 1400RPM |
| Pellet diameter | 0.8-3mm |
| Diameter Of Rctary Tabel | 250mm |
| Screen diameter | 0.7/1.0/1.5/2.0/3.0mm (Optional) |
| Coating air volume | 2.4m³/min |
| Dimension | 1150*700*1350mm(Reference Size) |
| Compressed air | 0.3m³/h |

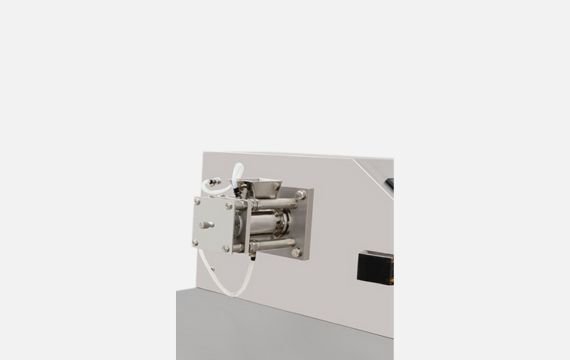

Adjustable Pellet Size
Pilotech YC-910 Extruder Spheronizer offers flexibility in controlling pellet size, thanks to its interchangeable mesh plates, which come in sizes of 0.2mm, 0.5mm, 1mm, and 3mm.

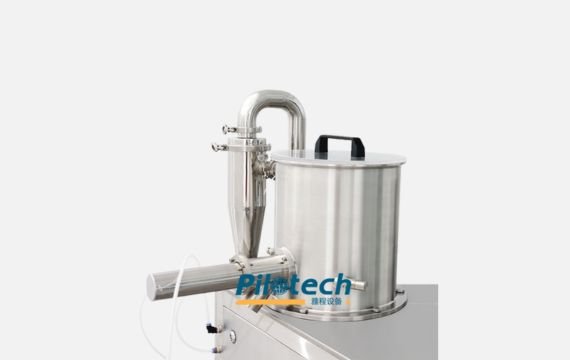

Spheronization Coating Barrel
When the material enters the spheronization coating barrel, it is subjected to high-speed centrifugal force, and the addition of coating solution gradually shapes the particles into smooth and uniform spheres.

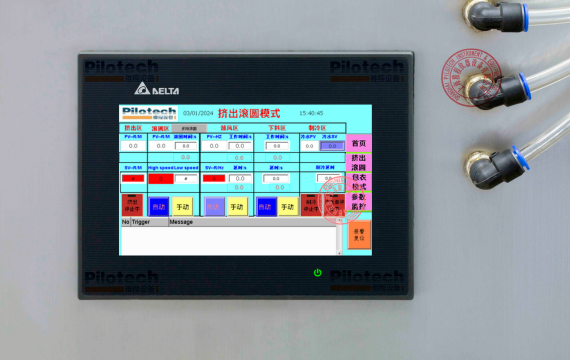

LCD Color Touchscreen
Equipped with a LCD color touchscreen that serves as the central control interface. Allowing operators to easily navigate through settings, monitor real-time data, and adjust parameters such as temperature, extrusion speed, and coating flow rates.
Pilotech Related Products
Complete Guide
to YC-910 Extruder Spheronizer
Extrusion and spheronization are key processes in various industries, especially in the pharmaceutical industry, where they are used to produce uniform spherical particles. These processes ensure that the final product has consistent size, shape and composition.
Our YC-910 Extruder Spheronizer combines extrusion, spheronization, drying and coating in one.
The capacity of YC-910 Extrusion Spheronizer is 1-3kg/batch.
YC-910 Extruder Spheronizer is carefully designed to efficiently and reliably produce uniform, high-quality spherical particles.
YC-910 Extruder Spheronizer has a yield rate of over 95%, and the particles produced have excellent sphericity and uniform particle size distribution.
We have added a side spray coating function to YC-910 Extruder Spheronizer, and the coating effect is better than that of a general fluidized bed coater.
YC-910 Extruder Spheronizer is equipped with an ice water unit, which is suitable for efficient pelleting of heat-sensitive materials without affecting the activity of the materials.
Contact Pilotech today to learn more, request a quote, or schedule a demonstration. Our team of experts is eager to assist you in making the best choice for your production needs.
Technical Specifications
| Parameter | Pilotech YC-910 Extrusion Spheronizer |
| Power Supply | Three-phase five-wire; 6KW. |
| Voltage | 380V |
| Capacity | 1-3KG/H |
| Extrusion speed | 50RPM |
| Spheronization speed | 1400RPM |
| Pellet diameter | 0.8-3mm |
| Diameter Of Rctary Tabel | 250mm |
| Screen diameter | 0.7/1.0/1.5/2.0/3.0mm (Optional) |
| Coating air volume | 2.4m³/min |
| Dimension | 1150*700*1350mm(Reference Size) |
| Compressed air | 0.3m³/h |
YC-910 Extruder Spheronizer combines extrusion, spheronization, drying, and coating in one compact machine, offering unparalleled efficiency and versatility.
YC-910 Extruder Spheronizer boasts a high yield rate of up to 95% or more, minimizing waste and maximizing production efficiency.
Absolutely. The YC-910 is designed to meet Good Manufacturing Practice (GMP) standards.
Pellet size can be adjusted by selecting different mesh plates (0.2mm, 0.5mm, 1mm, and 3mm) and fine-tuning the process parameters.
YC-910 Extruder Spheronizer is designed for speed, producing a batch of pellets in approximately 3 minutes, depending on the material and process settings.
YC-910 Extruder Spheronizer is versatile enough for use in pharmaceuticals, ceramics, catalysts, chemicals, and the food industry.
Pilotech offers extensive technical support, including installation assistance, training, and ongoing maintenance services to ensure your YC-910 Extruder Spheronizer operates at peak efficiency.
To purchase YC-910 Extruder Spheronizer, contact Pilotech directly through our website, email, or phone. Our team will assist you with pricing, customization options, and delivery details.
YC-910 Extruder Spheronizer is securely packaged in a robust, custom-designed crate to protect it during transit. We use reliable shipping partners and provide tracking information to ensure you can monitor your machine’s journey.
Delivery times vary depending on your location and the specifics of your order, such as customization requirements. Typically, you can expect YC-910 Extruder Spheronizer to be delivered within 4 to 8 weeks from the date of order confirmation. Our team will provide you with a more accurate estimate once your order is placed.
Pilotech provides a comprehensive one-year warranty on YC-910 Extruder Spheronizer. Extended warranty options are also available upon request.
Even after the warranty period, Pilotech continues to offer full support for your YC-910 Extruder Spheronizer. We provide paid maintenance services, spare parts, and technical support to ensure your machine continues to operate smoothly. You can reach out to our support team at any time for assistance.
