YC-01 Lab Freeze Dryer (Spray Version)

Complete Guide
to YC-01 Lab Freeze Dryer (Spray Version)

Welcome to the comprehensive guide for YC-01 Lab Freeze Dryer (Spray Version).

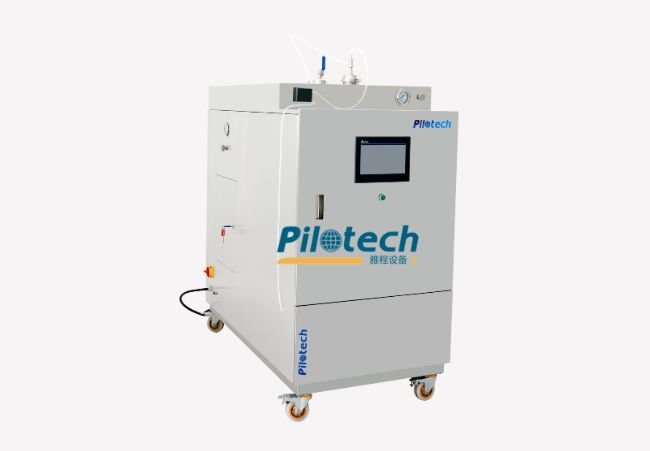

YC-01 Lab Freeze Dryer (Spray Version) is a new type of freeze dryer developed by Pilotech.

Pilotech introduced the spray technology in spray drying into the freeze drying equipment. Before the material is freeze-dried, the material is atomized and then frozen at low temperature, which expands the surface area of ​​the material in contact with the outside world, changes the surface structure of the material, increases the freeze-drying speed of the material and improves the solubility of the material.

YC-01 Lab Freeze Dryer (Spray Version) uses liquid nitrogen as the cold source, and the hourly consumption of liquid nitrogen is 10 liters. The processing capacity of YC-01 Lab Freeze Dryer (Spray Version) is 3 liters per batch. We use liquid nitrogen for cooling, and its lowest temperature can reach minus 100 degrees. It has infrared heating function, which makes the whole drying process faster. YC-01 Lab Freeze Dryer (Spray Version) adopts a spray freezing and drying integrated design.

After feeding, the material can be directly frozen into dry powder or frozen into ice crystals and used in combination with the freeze dryer for continuous production of spray freeze drying.

YC-01 Lab Freeze Dryer (Spray Version) adopts a special spray design. The spray head does not need to be equipped with a heating device when atomizing. The equipment adopts a fully automated design. The installation and disassembly of the drying chamber are all system-controlled operations, and no manual disassembly is required.

The recovery rate of YC-01 Lab Freeze Dryer (Spray Version) is as high as 99% (based on standard samples).

YC-01 Lab Freeze Dryer (Spray Version) is suitable for spray freeze drying of trace materials, mainly for heat-sensitive materials, some biological preparations and enzyme preparations, etc.

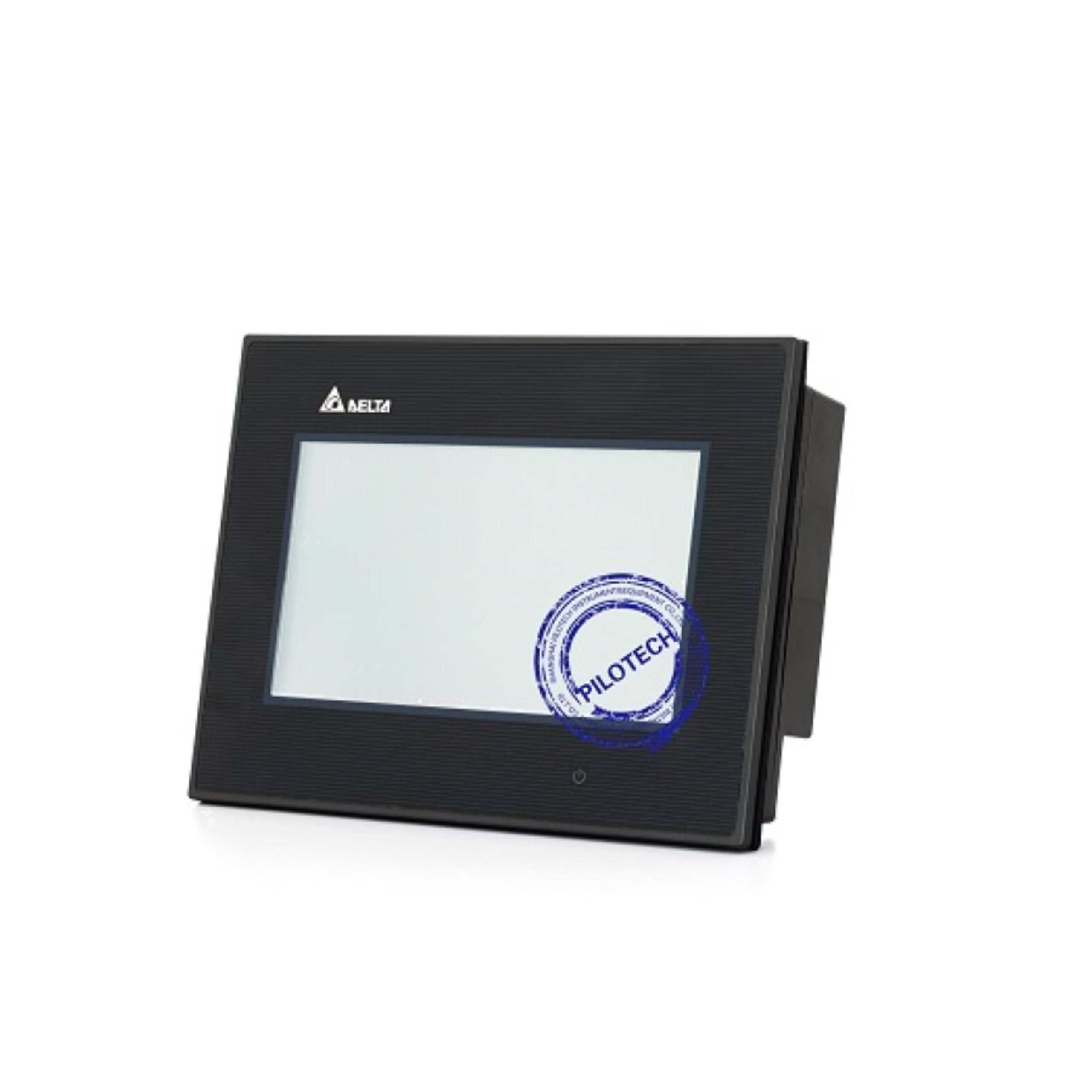

When we use YC-01 Lab Freeze Dryer (Spray Version), we only need to set the parameters on the touch screen, and then turn it on to run.

Working principle of YC-01 Lab Freeze Dryer (Spray Version)

First, we put the feed pipe into the material barrel, and the liquid material enters through the self-priming peristaltic pump, and then it is atomized into small droplets at the spray head. The small droplets instantly turn into small ice crystals in the freezing environment. After the small ice crystals sublimate, we can collect the powder.

Ordinary spray dryers on the market only have one spray drying function, and they use hot air heating for drying.

Then our YC-01 Lab Freeze Dryer (Spray Version) is in a freezing environment, which turns the liquid into small ice crystals and then sublimates to obtain powder particles. It can well keep the active ingredients of the material from being destroyed.

Technical Specifications

Parameter	Pilotech YC-01 Lab Freeze Dryer (Spray Version)
Power Supply	220V; single-phase; 10A
Capacity	Max. 3L/batch
Pump flow range	Max.1500mL/h
Freezing temperature	<-80⁰C
Cold trap temperature	≤-60⁰C
Environment temperature	5~35℃
Spray pressure	0.5-2 bar(adjustable)
Compressed air	32L/min
Particle size	1～200μm
Nozzle type	Two fluid nozzle
Nozzle tip diameter	1.0mm standard
Body material	SUS-304 Stainless steel
Dimensions	850*850*1400mm
Weight	78KG
Display	8-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency
