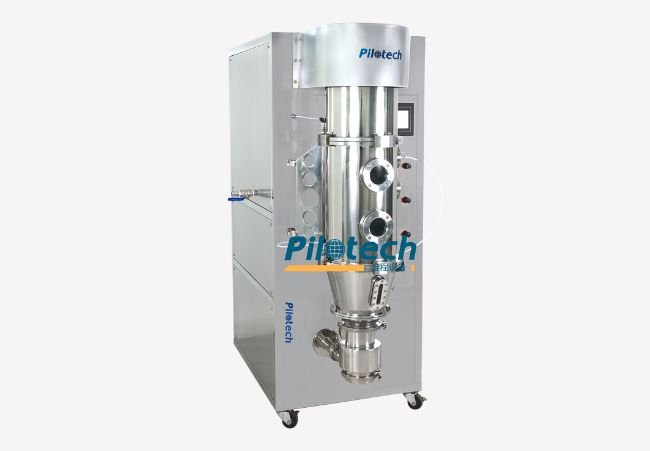

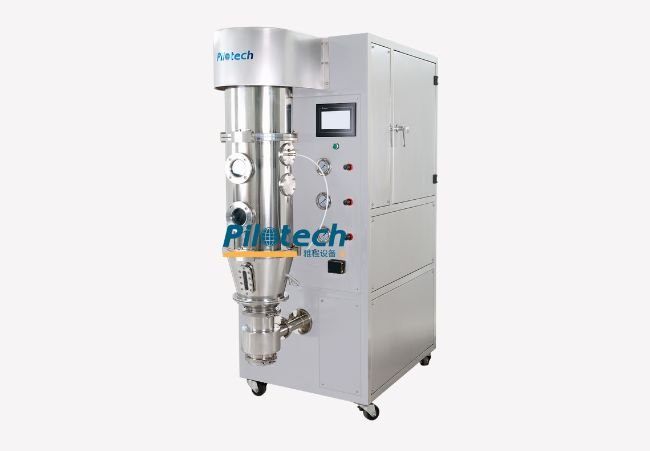

Lab Fluidized Bed Coater Model: YC-03
- Adopt a new type of blowback system.
- Simple operation, low energy, cost-effective.
- Touchscreen operation, real-time parameter adjustment.
- A new type of pneumatic seal to ensure airtightness.
- Can switch between top spray, tangential spray, or bottom spray for different materials.
- Datasheet
- Video
| Sr.no | Parameter | Pilotech YC-03 Fluidized Bed Coater |
| 1 | Power Supply | 8KW |
| 2 | Voltage | 380V; three-phase five-wire; |
| 3 | Spray granulator capacity | Max. 3000g/batch |
| 4 | Fluid bed drying | Max. 3000g/batch |
| 5 | Coating | Max. 3000g/batch |
| 6 | Mixing | Max. 3000g/batch |
| 7 | Granulator temperature | 40-150⁰C |
| 8 | Minimum sample volume | 500g |
| 9 | Rated airflow | 240 mᶟ/h |
| 10 | Nozzle type | Two fluid nozzle |
| 11 | Nozzle jet | 1.0mm standard |
| 12 | Body material | SUS304 Stainless steel |
Self-priming Peristaltic Pump
The self-priming peristaltic pump meets customer requirements with its flexible rotor assembly. It offers reliable performance, easy maintenance, and the ability to handle various fluid types, making it ideal for diverse applications.

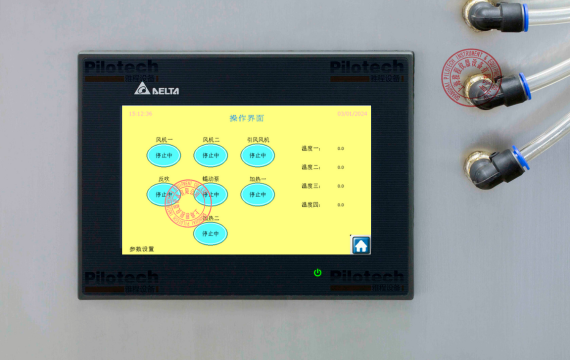

Reliable Color LCD Touchscreen
Adopt brand Color LCD touch screen to ensure the use effect. Parameters can be set and adjusted in real time, easy to operate and save time.

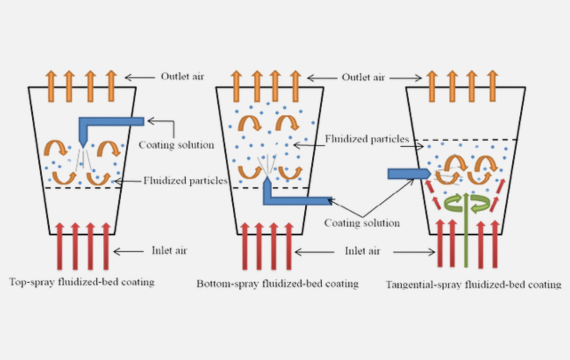

Top, Tangential, and Bottom Spray
Top spray is versatile for drying, granulating, and taste-masking coatings. Tangential spray ensures thorough, even mixing, coating, and drying, producing uniform granules. Bottom spray is primarily used for functional coating of various pellets and fine particles.
Pilotech Related Products
Complete Guide
to YC-03 Fluidized Bed Coater
Welcome to the ultimate guide on YC-03 Fluidized Bed Coater, brought to you by Pilotech.
YC-03 Fluidized Bed Coater is a versatile equipment for spray granulation, fluid bed drying and coating.
YC-03 Fluidized Bed Coater is a pilot scale spray granulator, its maximum capacity is 3kg/batch, and the minimum capacity is 300g.
In addition, we can also customize small granulation pot and coating pot according to your needs.
YC-03 Fluidized Bed Coater is specially designed, suitable for granulation and coating of sugary and high viscosity materials.
When YYC-03 Fluidized Bed Coater is granulating, we have configured two top-spray spray heads. These two spray heads can be switched during the experiment. When the material particles are getting bigger and bigger, you can switch to bottom spray head to make more uniform particles.
YC-03 Fluidized Bed Coater adopts air tight sealing method, which is better than silica gel sealing performance.
We have configured three blowers for the YC-03 pilot scale spray granulator, and we have equipped each blower with a three stage purification system. The purification effect of the inlet air is very obvious and meets the requirements of GMP.
YC-03 Fluidized Bed Coater is equipped with an automatic material receiving system, the operator can automatically suck out the granulated material with a tube, and the operation is very convenient.
YC-03 Fluidized Bed Coater has two methods of top spray and bottom spray, and optional tangential spray is also available. After using this spray method, the granules produced are highly spherical and very uniform. The maximum particle size of YC-03 Fluidized Bed Coater is 5mm. The particles material above 50 microns can be granulated, and particles material above 30 microns can be coated. If the specific gravity of the material is bigger, smaller particles material can also be granulated or coated.
Shanghai Pilotech has produced laboratory equipment for more than 20 years, and more than 3,500 customers around the world are using our equipments. And many of our equipments are still running great after 10+ years.
If you are interested in our YC-03 Fluidized Bed Coater or any of our other laboratory-scale equipment, please contact us. Our professional sales team is ready to assist you and provide solutions tailored to your specific requirements.
To understand the full potential of YC-03 Fluidized Bed Coater, let’s take a closer look at its key specifications:
| Parameter | Pilotech YC-03 Fluidized Bed Coater |
| Function | Spray granulator, coating, fluid bed drying, mixing |
| Spray granulator capacity | Max. 3000g/batch |
| Minimum sample volume | 500g |
| granulator temperature | 40-150⁰C |
| Compressed air | 1-4bar |
| Coating | Max. 3000g/batch |
| Mixing | Max. 3000g/batch |
| Fluid bed drying | Max. 3000g/batch |
| Nozzle type | Two fluid nozzle |
| Nozzle jet | 1.0mm standard |
| Rated airflow | 240 mᶟ/h |
| Peristaltic pump | Max. 3000ml/h |
| Main chamber volume | 30L |
| Heater power | 380V; three-phase five-wire; 8KW |
| Main chamber material | SUS304 Stainless steel |
| Body material | SUS304 Stainless steel |
| Seal of cyclone/cylinder | Silicone |
| Dimensions | 1450*1180*2290mm |
| Display | 7-Inch LCD display, USB port |
YC-03 Fluidized Bed Coater has a maximum capacity of 3 kg/batch, which is suitable for pilot-scale production needs.
The minimum capacity is 300g/batch, allowing for flexibility in small-scale testing.
YC-03 Fluidized Bed Coater is versatile and can process a wide range of materials including powders, granules and pellets for a variety of applications.
Yes, YC-03 Fluidized Bed Coater is specially designed to handle high-viscosity and sugar-containing materials efficiently.
YC-03 Fluidized Bed Coater can reach a maximum temperature of 200°C, allowing for efficient drying and coating processes.
YC-03 Fluidized Bed Coater is equipped with two top-spray heads that can be switched online. This allows for continuous operation and ensures uniform granulation as particle size increases.
YC-03 Fluidized Bed Coater uses an air-tight sealing method, which provides superior performance compared to traditional silicone sealing.
YC-03 Fluidized Bed Coater is equipped with three blowers, each featuring a three-stage purification system, ensuring that the incoming air is highly purified and meets GMP standards.
Yes, YC-03 Fluidized Bed Coater is designed for both laboratory-scale and small-scale production, making it ideal for research and development applications.
YC-03 Fluidized Bed Coater offers top-spray, bottom-spray, and an optional tangential spray mode for versatile granulation and coating processes.
YC-03 Fluidized Bed Coater can handle particle sizes up to 5mm, making it suitable for a wide range of applications.
YC-03 Fluidized Bed Coater is capable of applying a wide range of coatings, including polymers, waxes, and resins, depending on your specific application requirements.
YC-03 Fluidized Bed Coater can coat particles as small as 30 microns, ensuring precise and uniform coating.
The dual top-spray head system allows for precise control over the granulation process, ensuring uniform and high-quality granules.
Contact us today to learn more about the YC-03 Fluidized Bed Coater, schedule a demo, or request a quote. Our team is ready to assist you with all your needs.
Spare parts can be ordered directly from Pilotech. Contact our sales team or visit our website for more information on available parts and ordering procedures.
