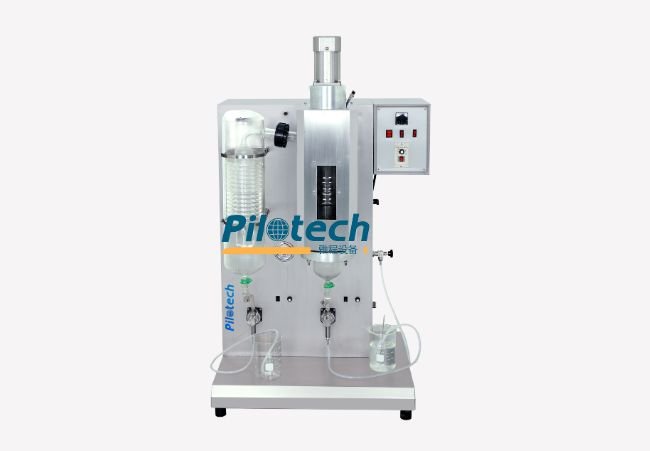

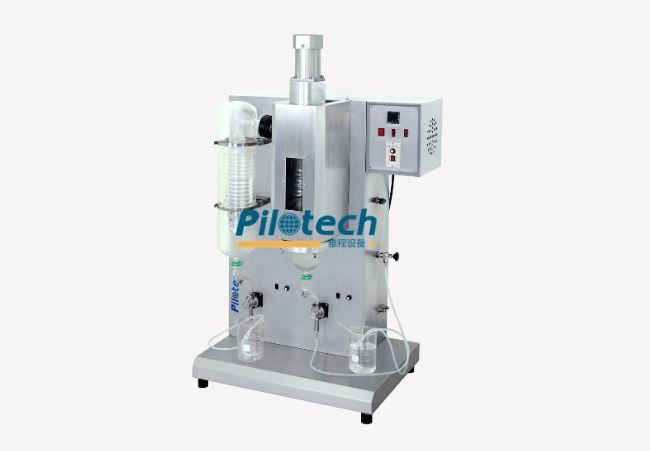

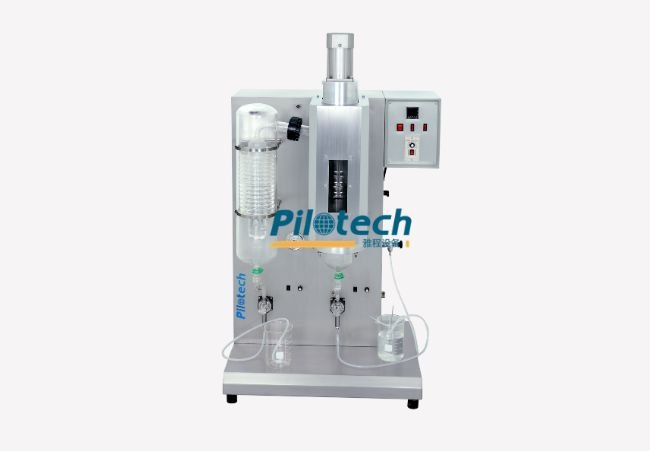

YC-210 Wiped Film Evaporator
- Continuous feeding and discharging.
- Handles high-viscosity and foaming materials.
- Water evaporation capacity is 1200ml/h.
- Efficient concentration and recovery.
- Highly versatile in application.
- Datasheet
- Video
| Sr.no | Parameter | Pilotech YC-210 Wiped Film Evaporator |
| 1 | Power Supply | Supply 3000W |
| 2 | Voltage | single-phase; 220V; 50/60Hz |
| 3 | Capacity | 1-3L/h |
| 4 | Evaporation area | 0.6㎡ |
| 5 | Solvent evaporation amount | 1200ml/h |
| 6 | Condensation area | 0.5㎡ |
| 7 | Feeding method | Needle valve |
| 8 | Scraper speed | 100-1200RPM (Stepless) |
| 9 | Temperature control | PID control |
| 10 | Heating precision | ±1⁰C |

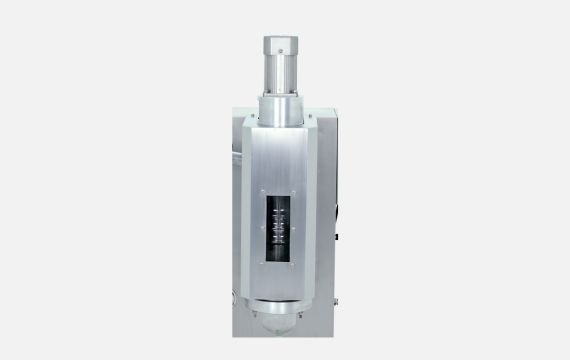

Wiped Film Evaporator Chamber
It works by allowing the liquid material to flow down the heated tube wall in a thin film under the action of the scraper. This thin film distribution enhances heat transfer, promotes efficient evaporation and ensures that the material is treated evenly as it passes through the chamber.

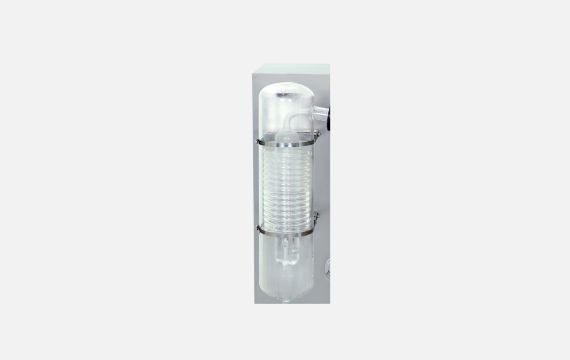

Solvent Recovery Through Condensation
As the evaporated material rises from the heated section, it passes into the condenser where it is rapidly cooled, converting the vapor back into liquid form. This liquid, now separated from the condensed material, is collected in designated containers for recovery or disposal.

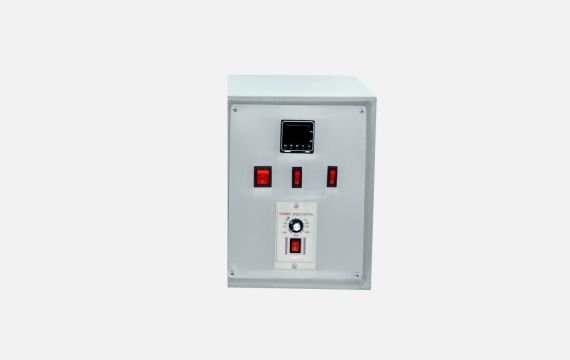

Control System
The intuitive interface makes it easy to set and monitor these parameters in real time, ensuring that the evaporation process is optimized for different materials. In addition, the control system includes safety features such as over-temperature protection and alarms to provide a reliable and safe operating environment.
Pilotech Related Products
Complete Guide
to YC-210 Wiped Film Evaporator
YC-210 Wiped Film Evaporator has the same function as a rotary evaporator, which can quickly concentrate liquid materials at low temperatures.
Unlike a rotary evaporator, a rotary evaporator cannot concentrate materials that are easy to foam and have high viscosity. The Pilotech YC-210 Wiped Film Evaporator can solve this problem very well.
When using a rotary evaporator, the material needs to be added at one time, but Pilotech YC-210 Wiped Film Evaporator can feed and discharge materials continuously, which is more efficient.
The water evaporation capacity of the YC-210 Wiped Film Evaporator is 1200ml/h.
Workflow of the YC-210 Wiped Film Evaporator
The liquid material enters through the feed pipe and flows downward in a film along the wall of the heating pipe for heat transfer and evaporation. The evaporated water (solvent) becomes liquid under the action of the condenser and is recovered separately, and the concentrated material flows back into the container.
During the entire concentration process, the residence time of the material from entering the system for concentration to leaving the heat source is very short, only 30 seconds. For heat-sensitive materials, its active ingredients can be kept from being destroyed by high temperature to the greatest extent.
Technical Specifications
| Parameter | Pilotech YC-210 Wiped Film Evaporator |
| Evaporation | 1200ml/h |
| Evaporation area | 0.06㎡ |
| Scraper speed | 100-1200RPM |
| Condensation area | 0.5㎡ |
| Power Supply | 165W |
| Feeding method | Needle valve |
| Temperature control | PID control |
| Heating precision | ±1⁰C |
| Dimension | 850*600*1420mm |
Contact Pilotech today to learn more about the YC-210 Wiped Film Evaporator. Our team of experts is here to answer any questions you may have and help you get started with your new equipment.
YC-210 Wiped Film Evaporator is designed for concentrating liquid materials, especially those that are heat sensitive, highly viscous, or prone to foaming. It ensures efficient evaporation while maintaining sample integrity.
YC-210 Wiped Film Evaporator has a water evaporation capacity of 1200ml/H.
Yes, the YC-210 is ideal for heat-sensitive materials due to its short residence time of only 30 seconds, minimizing exposure to high temperatures.
YC-210 Wiped Film Evaporator is versatile and can process a wide range of materials, including those with high viscosity, those that foam easily, and those that are heat-sensitive.
Yes, YC-210 Wiped Film Evaporator is designed with user-friendly controls, including a speed regulator and vacuum valve, making it easy to operate even for those new to wiped film evaporation.
To purchase YC-210 Wiped Film Evaporator, simply contact Pilotech’s sales team. We’ll guide you through the process, from selecting the right model to installation and training.
