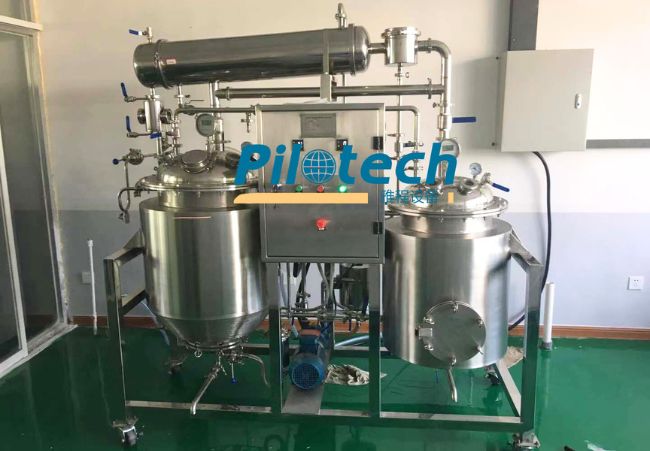

YC-100 Extraction Tank
- 100L stainless steel extraction tank.
- Material feeding is 5～20kg/batch.
- PID temperature control, accuracy ±2℃.
- High efficiency concentration, ratio of 1.1-1.38.
- Suitable for extraction of herbs, tea, juice and medicine.
- Datasheet
- Video
| Sr.no | Parameter | Pilotech YC-100 Extraction Tank |
| 1 | Power Supply | Three-phase five-wire; 27KW. |
| 2 | Voltage | 380V |
| 3 | Extraction tank volume | 100L |
| 4 | Machine Material | SUS 304 Stainless Steel |
| 5 | Evaporation chamber vacuum degree | 0~-0.08MPa |
| 6 | Precision of temperature | ±2℃ |
| 7 | Cooling water | 3t/h |
| 8 | Cooling water pressure | ＜0.3pa |
| 9 | Coiled tube condenser area | 3㎡ |
| 10 | Dimension | 2100*1150*2150mm(Reference Size) |
| 11 | Configuration | Stainless steel extractor（100L), Tube array condensator, coiled tube condenser, oil-water separator, pipeline sight glass, Stainless steel water ring pump, Omron temperature controller, Stainless steel extract blue, electric heater, Sanitary safety valve, control cabinet, connection with pipe Tube Fitting Valve |
Pilotech Related Products
Complete Guide
to YC-100 Extraction Tank FAQs
The volume of YC-100 Extraction Tank is 100L.
The feed volume of YC-100 Extraction Tank is 5 to 20 kg/batch.
YC-100 Extraction Tank is made of SUS304 stainless steel with a three-layer structure: outer layer for heat preservation, middle layer for heating, and inner layer polished for a smooth finish.
Yes, YC-100 Extraction Tank works under ordinary and negative pressure conditions, with a vacuum degree of 0～-0.08MPa.
The heating power requirement is 380V, three-phase five-wire, with a total power of 27 KW.
The system consumes cooling water at a rate of 3t/h, with a pressure of less than 0.3 MPa.
Yes, the YC-100 extraction tank comes with a concentration tank, which has high concentration efficiency and a concentration ratio of 1.1 to 1.38.
The extraction temperature of YC-100 Extraction Tank adopts a PID constant temperature control system with an accuracy of ±2℃.
YC-100 Extractor can be used for water extractions and is ideal for pilot plant testing of natural herbal extractions, as well as extractions of herbal liquids, teas, and juices.
YC-100 Extraction Tank is suitable for use in research institutions, universities, hospitals, pharmaceutical factories, and the food industry.
The system includes a 100L stainless steel extraction tank, oil-water separator, pipeline filter (condensation area 3㎡), heater, recovery condenser, concentration tank, water ring vacuum pump, electrical control cabinet, Omron temperature controller, stainless steel rack, connecting pipeline valves, and instruments.
YC-100 Extraction Tank is securely packed and shipped in a wooden crate to ensure safe transportation.
YC-100 Extraction Tank comes with a one-year warranty, and extended warranties are available.
You can purchase YC-100 Extraction Tank by contacting our sales team directly through email, phone, or our website’s inquiry form.
Yes, you can purchase spare parts and accessories for YC-100 Extraction Tank either with your order or separately at a later time.
