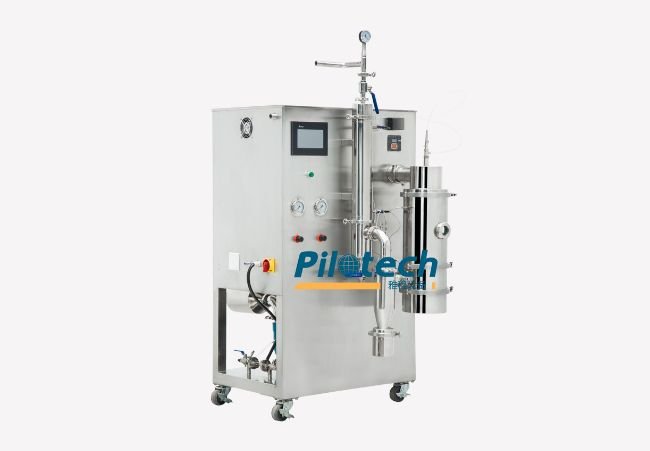

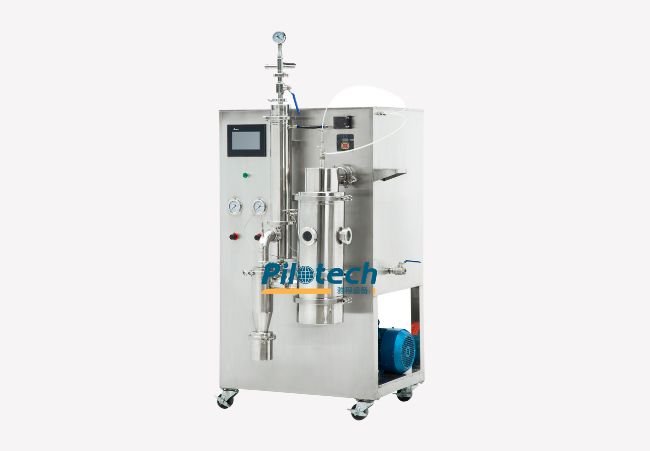

YC-2000 Lab Scale Spray Dryer
YC-2000 Lab Scale Spray Dryer is a vacuum low-temperature spray dryer that provides solutions for heat-sensitive materials such as probiotics and enzyme preparations.
- The capacity is 1500ml/h.
- Particle size ranges is 1-100µm.
- LCD touch screen.
- Optional cooling system.
- Widely applicable, for heat-sensitive materials.
- Datasheet
- Video
| Sr.no | Parameter | Pilotech YC-2000 Lab Scale Spray Dryer |
| 1 | Power Supply | 7KW; 380V; three-phase five-wire; 50/60 Hz |
| 2 | Capacity | 1000～1500mll/h for water |
| 3 | Min. Inlet temperature | 65⁰C |
| 4 | Heater power | 3000W |
| 5 | Temperature precision | ±1⁰C |
| 6 | Compressed air | 32L/min |
| 7 | Nozzle jet | 1.0mm standard/(0.5/0.8/1.5/2.0mm available) |
| 8 | Nozzle type | Two fluid nozzle |
| 9 | Possible particle size range | 1-100µm |
| 10 | Max. Sample feed | 1500ml/hr |
| 11 | Minimum sample volume | 30ml |
| 12 | Inlet temperature | 65～200⁰C |
| 13 | Body material | SUS-304 Stainless steel |
Two Fluid Atomizer with SUS316L Stainless Steel
Pilotech YC-2000 lab scale spray dryer features a two-fluid atomizer made of SUS316L stainless steel, with three-fluid optional.
SUS 304 Stainless Steel Components
The drying chamber, cyclone separator, collection tank, condenser, and other components of Pilotech YC-2000 Lab Scale Spray Dryer are all made from SUS 304 stainless steel, ensuring durability, corrosion resistance, and high-quality performance.
Needle Pressure Gauge
By adjusting the needle pressure gauge, the pressure can be precisely controlled to ensure smooth operation of the spray dryer, prevent sample clogging, and maintain optimal drying performance.

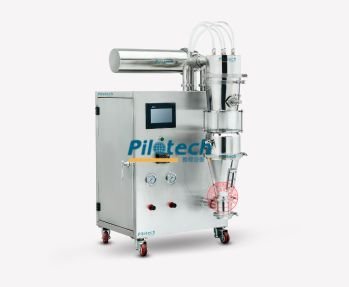

Pilotech Related Products
Complete Guide
to YC-2000 Lab Scale Spray Dryer
YC-2000 Lab Scale Spray Dryer is a vacuum laboratory spray dryer. This is a new spray dryer developed by Pilotech in 2008, specifically for heat-sensitive materials. It is suitable for materials that are easily denatured, discolored and oxidized when exposed to high temperatures.
Pilotech’s vacuum spray dryer has three specifications, YC-510 Vacuum Low Temperature Lab Spray Dryer with capacity of 500ML/L, YC-2000 Lab Scale Spray Dryer with capacity of 1500ML/H and YC-3100 Pilot Vacuum Spray Dryer with capacity of 3000ML/H.
Pilotech’s vacuum spray dryer adopts a modular design, divided into two modules, the upper one is a normal spray dryer and the lower one is a vacuum module. It can be used for drying conventional materials (at high temperatures) and can also be connected to a vacuum module for drying heat-sensitive materials.
The principle of the YC-2000 Lab Scale Spray Dryer is to reduce the boiling point of water by reducing the pressure in the system, thereby achieving efficient evaporation at a temperature far lower than that required for conventional spray drying. After the raw material liquid is atomized into tiny droplets, it quickly comes into contact with low temperature in a vacuum environment, and the water evaporates quickly, ultimately obtaining fine and uniform dry particles.
Pilotech uses a combination of spray drying and vacuum drying to reduce the inlet air temperature from 150°C to about 65°C, and the outlet air temperature is as low as 45°C. It is suitable for enzyme preparations, probiotics, heat-resistant polymer materials, biological products, pharmaceuticals and other industries.
Because the YC-2000 Lab Scale Spray Dryer is a low-temperature spray dryer, it is suitable for some sticky materials. The dried materials do not stick to the wall and have a high recovery rate, up to 85%.
Advanced temperature and vacuum control systems ensure a temperature control accuracy of ±1°C during the drying process, improving product quality stability.
The YC-2000 Lab Scale Spray Dryer atomizer is a concentric atomizer. During atomization, it is ensured that there is no eccentricity that causes spraying to one side of the bottle wall. After the atomizer is installed, it can be moved up and down to facilitate the adjustment of the atomization position to improve the spray drying effect.
The YC-2000 Lab Scale Spray Dryer adopts our carefully developed noise reduction and vibration reduction system to effectively reduce the noise of the vacuum pump and air compressor.
Optional cold water circulation system can reduce the cost and consumption of water resources.
Only 30ml of material can be used to complete an experiment with the YC-2000 Lab Scale Spray Dryer.
The YC-2000 Lab Scale Spray Dryer is made of SUS304 stainless steel, and the atomizer is made of SUS316L stainless steel. The drying chamber, cyclone separator, collection bottle and collection tube are all made of SUS304 stainless steel, and we can also customize it into SUS316L stainless steel.
The touch screen adopts a 7-inch color touch screen, and the language is English, and we can also customize it into your language according to your requirements.
Let’s take a look at the parameter details of the YC-2000 Lab Scale Spray Dryer:
Technical Specifications
| Parameter | Pilotech YC-2000 Lab Scale Spray Dryer |
| Power Supply | 7KW; 380V; three-phase five-wire; 50/60 Hz |
| Capacity | 1000～1500mll/h for water |
| Min. Inlet temperature | 65⁰C |
| Heater power | 3000W |
| Temperature precision | ±1⁰C |
| Compressed air | 32L/min |
| Nozzle jet | 1.0mm standard/(0.5/0.8/1.5/2.0mm available) |
| Nozzle type | Two fluid nozzle |
| Possible particle size range | 1-100µm |
| Max. Sample feed | 1500ml/hr |
| Minimum sample volume | 30ml |
| Spray chamber material | SUS-304 Stainless steel |
| Inlet temperature | 65～200⁰C |
| Cyclone separator material | SUS-304 Stainless steel |
| Body material | SUS-304 Stainless steel |
| Seal of cyclone/cylinder | Silicone |
| Min. outlet temperature | 45⁰C |
| Dimensions | 1050*1050*1850mm |
| Weight | 170KG |
| Display | 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency |
| Thermal protection | Blower does not stop until temp <90⁰C |
| Deblocking | Automatic |
| Atomizer material | SUS 316 Stainless steel |
The performance of the YC-2000 Lab Scale Spray Dryer is very stable and the effect is also very good. 90% of domestic universities and R&D companies have purchased our YC-2000 Lab Scale Spray Dryer. You can find many articles about our machines by searching “Shanghai pilotech” or our Chinese name “Shanghai Yacheng” on Google Scholar.
Contact Pilotech now to learn more about our innovative solutions, contact us today and experience the difference!
YC-2000 Lab Scale Spray Dryer is an advanced vacuum low-temperature spray drying machine designed specifically for drying heat-sensitive materials such as probiotics, enzymes, and herbal extracts.
The inlet temperature range is from 65°C to 200°C.
By reducing system pressure, the boiling point of water decreases, allowing efficient evaporation at lower temperatures, protecting sensitive components from thermal damage.
Yes, YC-2000 Lab Scale Spray Dryer has an English LCD touch screen interface, but we can also customize it in your language.
YC-2000 Lab Scale Spray Dryer utilizes a two-fluid spray nozzle, also three-fluid nozzle is optional.
YC-2000 Lab Scale Spray Dryer produces particles ranging from 1-100μm in size.
Yes, Pilotech provides comprehensive technical support and after-sales service to assist you with any operational or technical issues.
Contact Pilotech directly through our website or customer service hotline. Our sales team will guide you through the purchasing process and provide any additional information you need.
Pilotech offers spare parts for the YC-2000 Lab Scale Spray Dryer. Please contact our Customer Service Team for assistance and information on obtaining the necessary components.
Yes, YC-2000 Lab Scale Spray Dryer comes with one year standard warranty. Extended warranty options are also available.
Once the order is confirmed and payment is received, the processing time typically ranges from 4 to 6 weeks, depending on the order volume and customization requirements.
YC-2000 Lab Scale Spray Dryer is packed in a sturdy wooden box to ensure safe transportation. Protect the equipment from any potential damage during transportation.
To receive a detailed quote, please contact our sales team with your specific requirements and shipping address. We will provide a customized quote based on your needs.
Yes, we welcome potential customers to visit our facility. Please contact us to schedule a visit, and we will arrange a demonstration of YC-2000 Lab Scale Spray Dryer and provide a tour of our manufacturing site.
