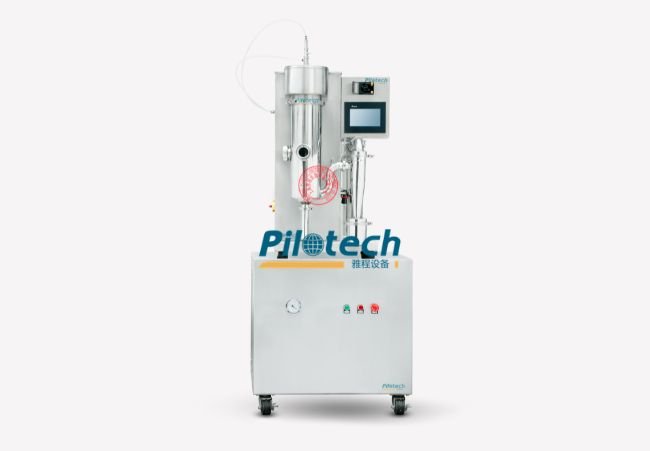

YC-510 Vacuum Low Temperature Lab Spray Dryer
- Max. capacity is 500ml per hour.
- Easy to operate and install.
- PLC control and touch screen parameter setting.
- Includes condensation temperature protection.
- Modular design with spray dryer on top and vacuum system below.
- Datasheet
- Video
| Sr.no | Parameter | Pilotech YC-510 Vacuum Low Temperature Lab Spray Dryer |
| 1 | Power Supply | 1500W(Spray dryer)
2000W(Vacuum system) |
| 2 | Voltage | 220V; single-phase; 50-60 Hz |
| 3 | Capacity | 500ml/h |
| 4 | Minimum sample volume | 30ml |
| 5 | Rated airflow | 1.5mᶟ/min |
| 6 | Max. inlet temperature | 200°C |
| 7 | Possible particle size range | 1-25µm |
| 8 | Temperature precision | ±1⁰C |
| 9 | Nozzle type | Two fluid nozzle |
| 10 | Nozzle jet | 1.0mm standard/(0.5/0.8/1.5/2.0mm available) |
| 11 | Body material | SUS304 Stainless steel |
Efficient Vacuum System
The vacuum system uses the principle of reducing pressure to lower the boiling point in order to reduce the spray dryer inlet and outlet air temperatures as much as possible.
Two-fluid Atomizer
A two-fluid atomizer is used to atomize the liquid into fine droplets using air flow, thereby achieving the purpose of drying.
LCD Color Touch Screen Operation
Equipped with an LCD color touch screen, it is easy to operate. Parameters can be easily controlled, including inlet air temperature, blower, peristaltic pump, etc. Users can quickly adjust settings, access real-time data and view processes with just a few taps.
Pilotech Related Products
Complete Guide
to YC-510 Vacuum Low-Temperature Lab Spray Dryer
Welcome to Pilotech’s comprehensive guide to the YC-510 Vacuum Low Temperature Lab Spray Dryer.
The difference between YC-510 Vacuum Low Temperature Lab Spray Dryer and the traditional spray dryer is that it adopts a vacuum low-temperature design. The system uses the principle of reducing boiling point by reducing pressure to reduce the inlet and outlet temperatures of the spray dryer as much as possible. It can be used for probiotics, enzyme preparations and other heat-resistant materials, such as heat-resistant polymer materials.

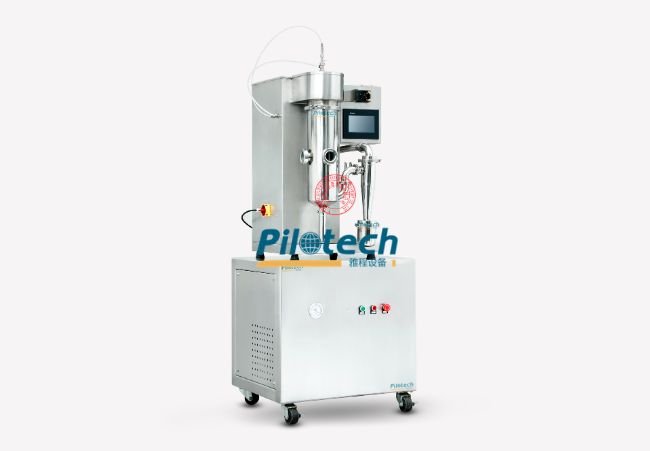

YC-510 Vacuum Low Temperature Lab Spray Dryer adopts a modular design. The equipment is divided into two parts, the upper part is the spray dryer host, which is a conventional spray dryer. The maximum inlet temperature is 200℃. When you need to apply it to heat-sensitive materials, you can connect the spray dryer host and the vacuum system below. The minimum inlet temperature is 60℃. Avoid the denaturation of most heat-sensitive materials after drying and other changes in physical or chemical properties.
The capacity of the YC-510 Vacuum Low Temperature Lab Spray Dryer is 500ml/h. When the solid content of your material is more than 20%, even if you only have 10ml or 20ml of material, you can complete an experiment. It is especially suitable for precious materials or materials that are difficult to prepare.
YC-510 Vacuum Low Temperature Lab Spray Dryer covers less than one square meter. It is equipped with a single-phase 220v power supply as standard, and can also be customized with a single-phase 110v power supply. Our vacuum pump can be connected to tap water or our customized circulating water system can be selected to save water.
Technical Specifications
| Parameter | Pilotech YC-510 Vacuum Low Temperature Lab Spray Dryer |
| Power Supply | 1500W(Spray dryer)
2000W(Vacuum system) |
| Voltage | 220V; single-phase, 50-60Hz |
| Min. outlet temperature | 50℃ |
| Capacity | 500ml/h |
| Rated airflow | 1.5 mᶟ/min |
| Max. inlet temperature | 200⁰C |
| Temperature precision | ±1⁰C |
| Nozzle jet | 1.0mm standard/(0.5/0.8/1.5/2.0mm available) |
| Nozzle type | Two fluid nozzle |
| Possible particle size range | 1-25µm |
| Mean residence time | 1.0-1.5 sec |
| Minimum sample volume | 30ml |
| Spray chamber material | SUS304 Stainless steel |
| Cyclone separator material | SUS304 Stainless steel |
| Receiving tank material | SUS304 Stainless steel |
| Body material | SUS304 Stainless steel |
| Seal of cyclone/cylinder | Silicone |
| Gas type | N2 (for solvent)or compressed air(for aqueous) |
| Dimensions | 880*550*900mm(Spray dryer)
850*700*800(Vacuum system) |
| Deblocking | Automatic |
| Display | 7-Inch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency |
| Thermal protection | Blower does not stop until temp <90⁰C |
| Inert loop (for organic solvents) | Optional |
Contact Pilotech today to learn more about the YC-510 Vacuum Low Temperature Lab Spray Dryer. Our team of experts is here to assist you with all your needs, from initial consultation to post-installation support.
For more information, visit our website or contact our sales team. Make Pilotech your partner.
YC-510 vacuum low temperature lab spray dryer adopts vacuum low temperature design. It uses the principle of reducing boiling point by reducing pressure to reduce the inlet and outlet air temperatures of the spray dryer as much as possible. It is suitable for probiotics, enzyme preparations and other heat-sensitive materials.
The capacity of YC-510 vacuum low temperature laboratory spray dryer is 500ml/h.
Even with as little as 10ml or 20ml of material, YC-510 Vacuum Low Temperature Lab Spray Dryer can complete an experiment, which is beneficial for precious or difficult-to-prepare materials.
YC-510 Vacuum Low Temperature Lab Spray Dryer uses vacuum cryogenic technology. This makes it ideal for drying heat-sensitive materials without compromising their integrity.
Absolutely. The YC-510 Vacuum Low Temperature Laboratory Spray Dryer is ideal for R&D applications because of its ability to process small sample volumes and precisely control drying conditions.
The standard power supply is a single-phase 220V, but it can also be customized for a single-phase 110V power supply.
Yes, the vacuum pump can be connected to tap water or an optional customized circulating water system to promote water conservation.
YC-510 Vacuum Low Temperature Lab Spray Dryer is suitable for a wide range of heat-sensitive materials, including probiotics, enzymes, pharmaceuticals, and high-molecular-weight substances.
